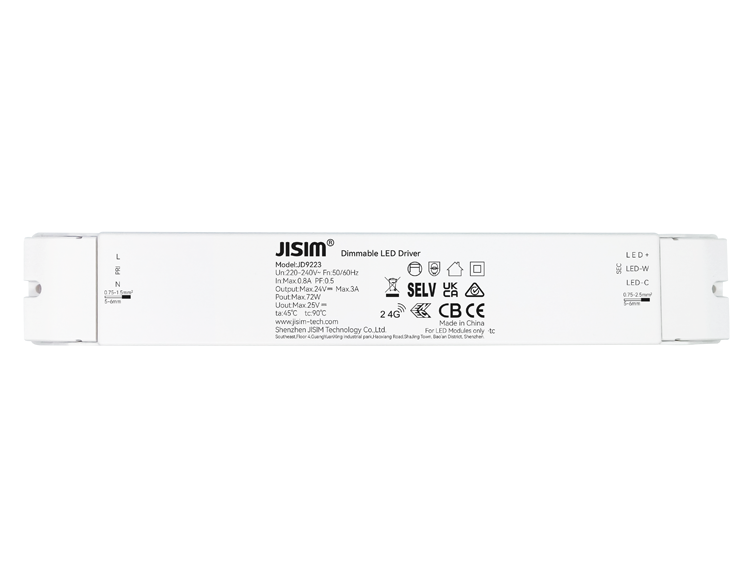

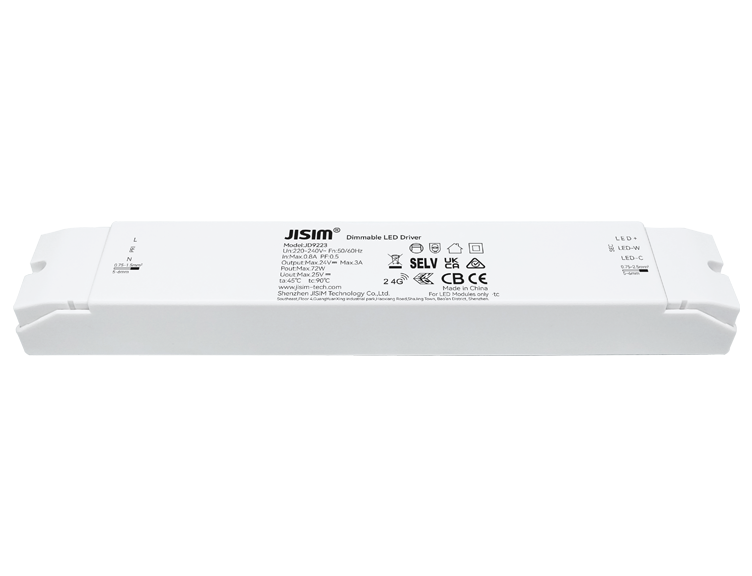

JD9223 2.4G RF 72W 3A 220-240VAC DIP

Product Features

  • Independent design,suitable for LED strips,linear lights,light films,magnetic track lights,decorative lights
  • Dimmable and CCT‑adjustable constant‑voltage driver,high efficiency,long service life
  • 2.4G RF wireless communication,strong Mesh networking capability,good anti‑interference performance
  • Smooth high‑performance dimming,flicker‑free,noise‑free
  • Dimming range 1…100%,built‑in soft‑start function
  • Support local remote control and wall‑panel control,remote control distance(open area)＞30 meters
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with safety extra‑low‑voltage standard
  • Screw‑lock input and output terminals
  • Ambient temperature ‑20～+45℃,maximum case temperature 90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD9223
  • Rated Voltage
    220-240Vac
  • Output Current
    3A
  • Product Dimension
    265*42*30mm
  • Dimming Mode
    2.4G RF
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:255.2±10g/pcs,Small Pack:284.5g/pcs,Inner Pack:4.57kg/carton,Outer Pack:19.17kg/carton
  • Packaging
    Inner Pack:15pcs/carton,Outer Pack:60pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.72W
  • Output Voltage
    24V
  • PF
    >0.5
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
