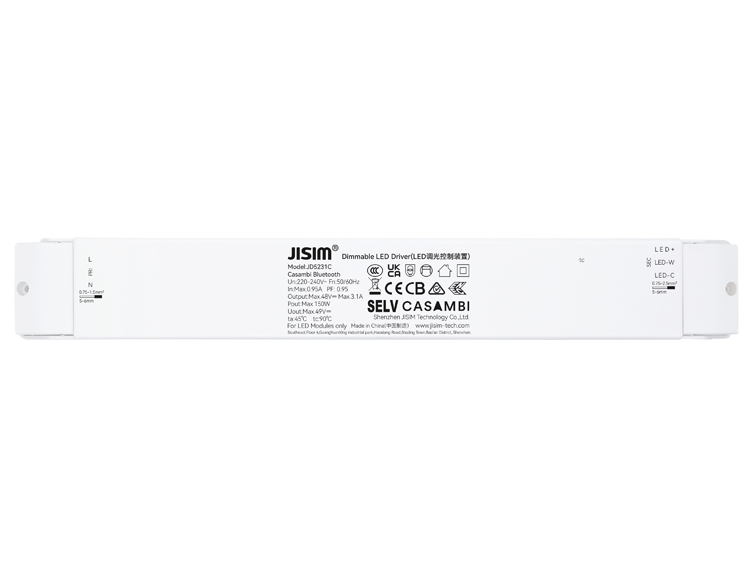

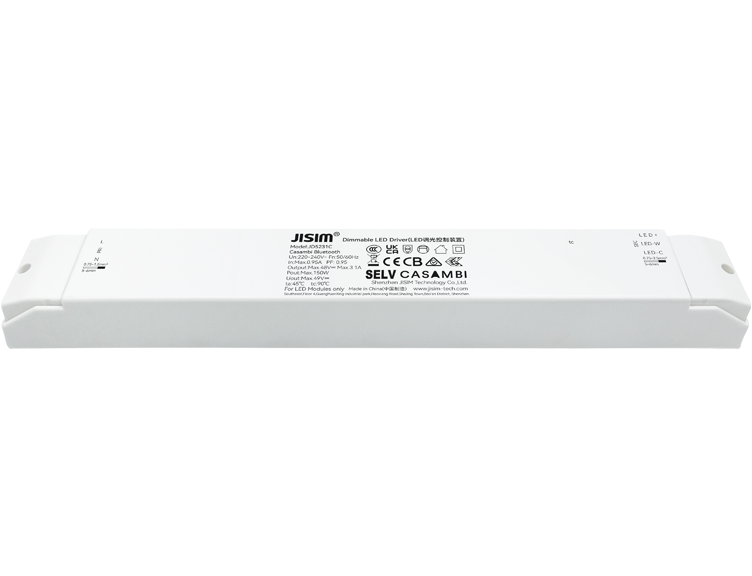

JD5231C Casambi Bluetooth 150W 3.1A 220-240VAC

Standalone design: Applicable to LED strips, light bars, linear lamps, light films, magnetic attraction lamps and decorative lamps
Dimmable color-tunable constant voltage driver: full power, high power factor, high efficiency and long service life
Bluetooth communication: Developed on Casambi platform with powerful networking performance
Smooth high-performance dimming: flicker-free and quiet
Dimming range: 1%~100%, built-in soft start function
Control: Casambi App compatible
Protections: Output short circuit, open circuit and overload protection
Compliance: Meet safety extra-low voltage standards
Terminals: Screw locking terminals for input and output
Operating temperature: Ambient temperature -20℃~+45℃; maximum housing temperature 90℃
Applicable lamps: Class I, Class II, Class III lamps
Protection Class: Class II

Consult Now Buy Now

Model Number

JD5231C
Rated Voltage

220-240Vac
Output Current

3.1A
Product Dimension

325*44*30mm
Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 382.1±10g per piece, small package: 415.8g per piece, medium carton: 5.7kg per carton, large carton: 23.7kg per carton
Packaging

Medium carton: 13pcs per carton Large carton: 52pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Voltage
Output Power

Max.150W
Output Voltage

48V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
