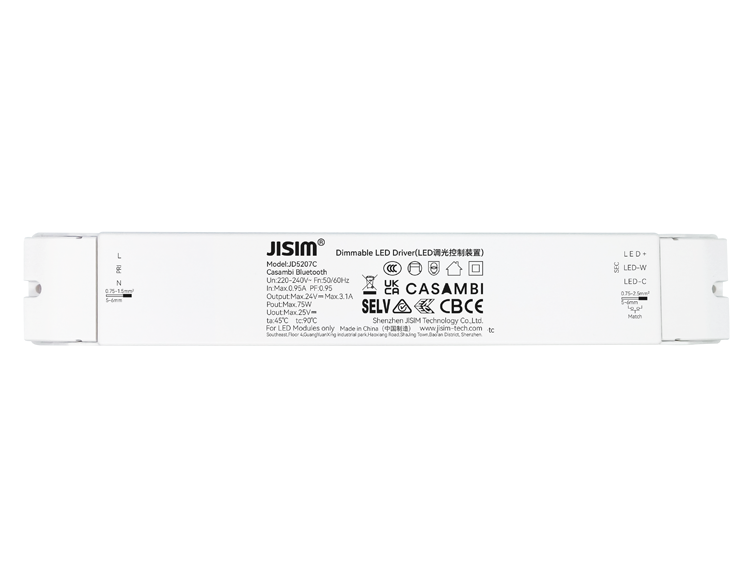

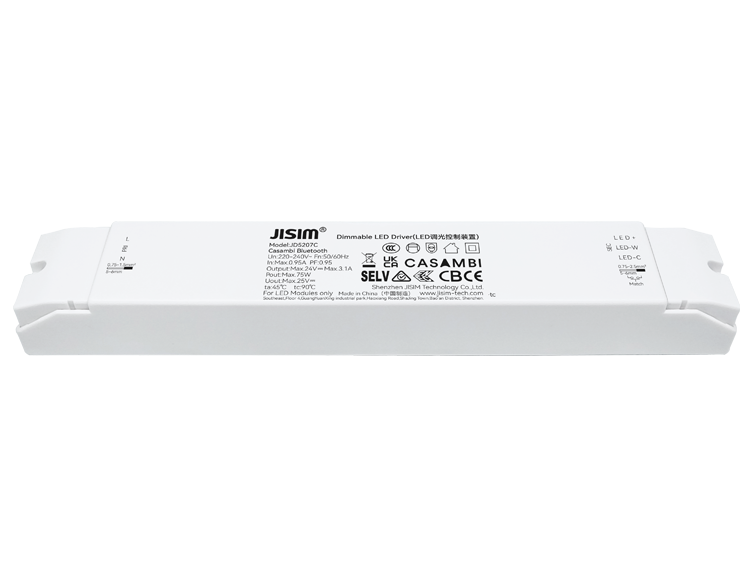

JD5207C Casambi Bluetooth 75W 3.1A 220-240VAC

Standalone Design: Applicable to LED strips, light bars, linear lights, light films, magnetic lights and decorative lights
Dimmable color-tunable constant voltage driver: Full power, high power factor, high efficiency and long service life
Bluetooth communication: Developed based on Casambi platform with powerful networking capability
Smooth high-performance dimming: Flicker-free and noise-free
Dimming range: 1%~100%, built-in soft start function
Control: Casambi App supported
Protections: Output short-circuit, open-circuit and overload protection
Compliance: Comply with safety extra-low voltage standards
Terminals: Screw locking terminals for input and output
Operating temperature: Ambient temperature -20℃~+45℃, maximum housing temperature 90℃
Applicable luminaires: Class I, II, III lamps
Protection Class: Class II

Consult Now Buy Now

Model Number

JD5207C
Rated Voltage

220-240Vac
Output Current

3.1A
Product Dimension

265*42*30mm
Dimming Mode

Casambi Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 255.2±10g per piece, small package: 284.5g per piece, medium carton: 4.57kg per carton, large carton: 19.17kg per carton
Packaging

Medium carton: 15pcs per carton Large carton: 60pcs per carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

Constant Voltage
Output Power

Max.75W
Output Voltage

24V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Standalone
Warranty

5 years
