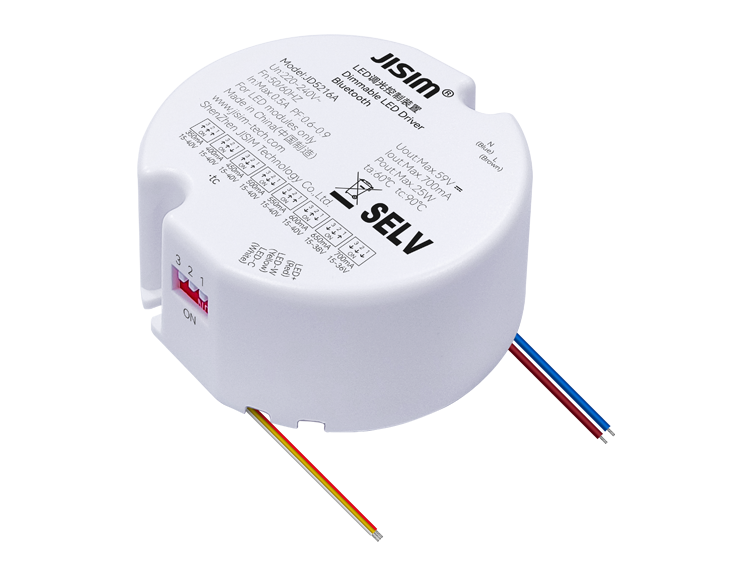

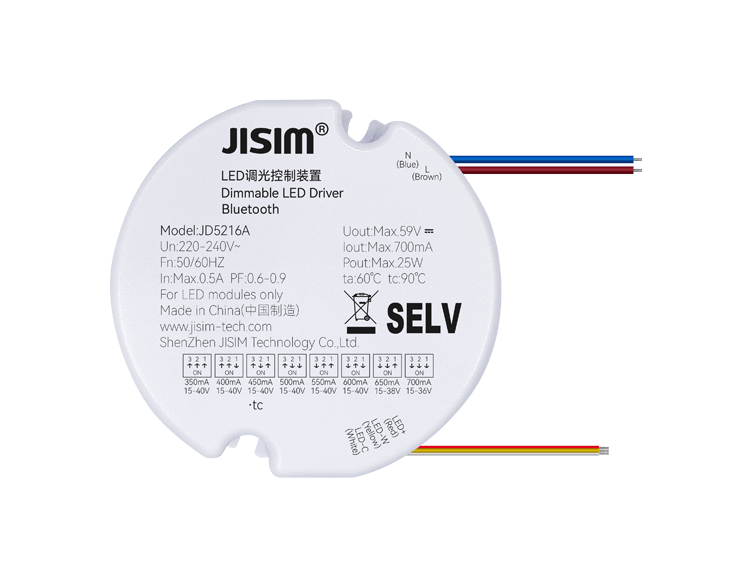

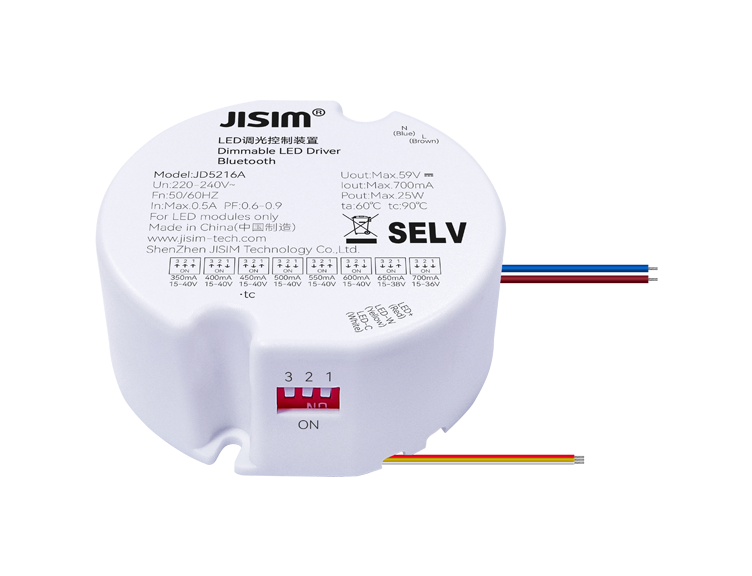

JD5216A Bluetooth 25W 350-700mA 220-240VAC DIP

Compact design,suitable for surface‑mounted downlights,spotlights,track lights and wall lamps
Built‑in driver application,external IPEX antenna
Dimmable CCT‑tunable CC driver,high power factor,high efficiency,long service life
Bluetooth communication,developed based on Mi‑Home platform,strong networking capability
Smooth high‑performance dimming,flicker‑free and noise‑free
Dimming range 0.5…100%,built‑in soft‑start function
Connected to Mi‑Home App,supports Xiao‑ai voice control and Xiaomi HyperConnect
Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Complies with safety extra‑low‑voltage standard
Lead‑type input and output terminals
Ambient temperature‑20～+60℃,maximum case temperature 90℃
Internally glue‑potted and sealed for enhanced protection of lamps requiring waterproof and moisture‑proof performance
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD5216A
Rated Voltage

220-240Vac
Output Current

350-700mA
Product Dimension

65*63*26mm
Dimming Mode

Bluetooth
Dimming Range

0.5-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:130.7±10g/pcs,Small Pack:143g/pcs,Inner Pack:7.74kg/carton,Outer Pack:31.8kg/carton
Packaging

Inner Pack:52pcs/carton,Outer Pack:208pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.25W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
