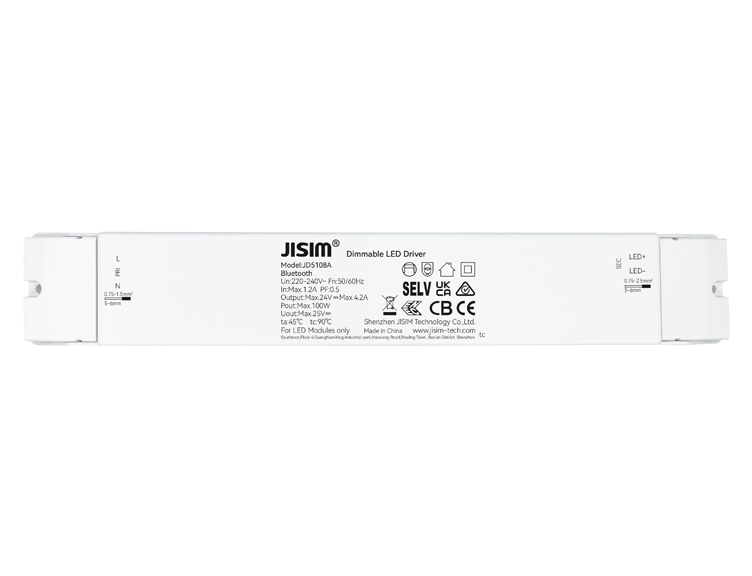

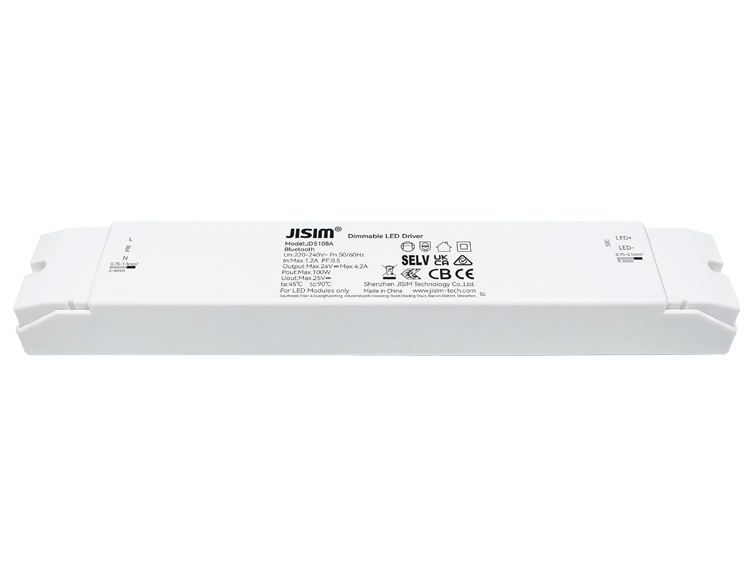

JD5108A Bluetooth 100W 4.2A 220-240VAC DIP
HomeProductBluetooth

JD5108A Bluetooth 100W 4.2A 220-240VAC DIP

Product Features

  • Independent design,suitable for LED strips,linear lights,light films,magnetic track lights,decorative lights
  • Dimmable constant‑voltage driver,full power,high efficiency,long service life
  • Bluetooth communication,developed based on Mi Home platform,strong networking capability
  • Smooth high‑performance dimming,flicker‑free,noise‑free
  • Dimming range 1…100%,built‑in soft‑start function
  • Integrated with Mi Home App,support Xiao Ai voice control,support Xiaomi HyperConnect
  • Output short‑circuit,open‑circuit and overload protection
  • Comply with safety extra‑low voltage standard
  • Screw‑locking terminals for input and output
  • Ambient temperature ‑20～+45℃,maximum case temperature 90℃
  • Suitable for class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection class Ⅱ
Consult Now Buy Now
  • Model Number
    JD5108A
  • Rated Voltage
    220-240Vac
  • Output Current
    4.2A
  • Product Dimension
    265*42*30mm
  • Dimming Mode
    Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Output short‑circuit,open‑circuit and overload protection
  • Packaging
    Inner Carton:15pcs/carton,Outer Carton:60pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.100W
  • Output Voltage
    24V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
