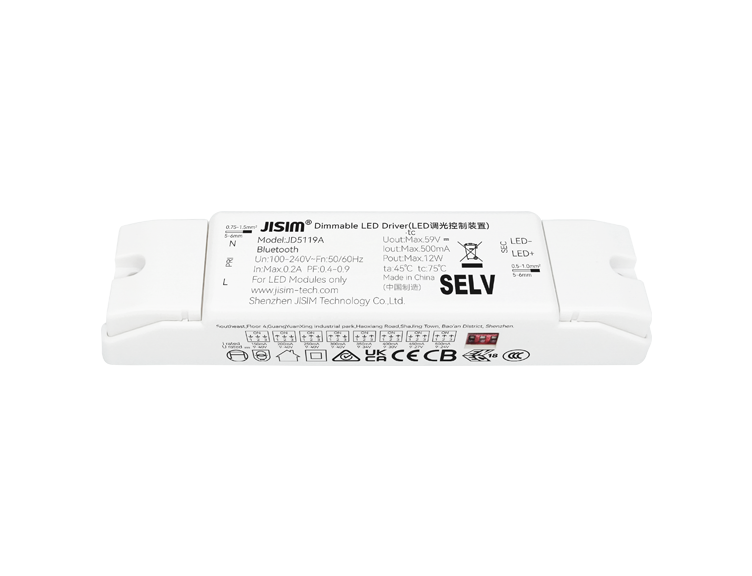

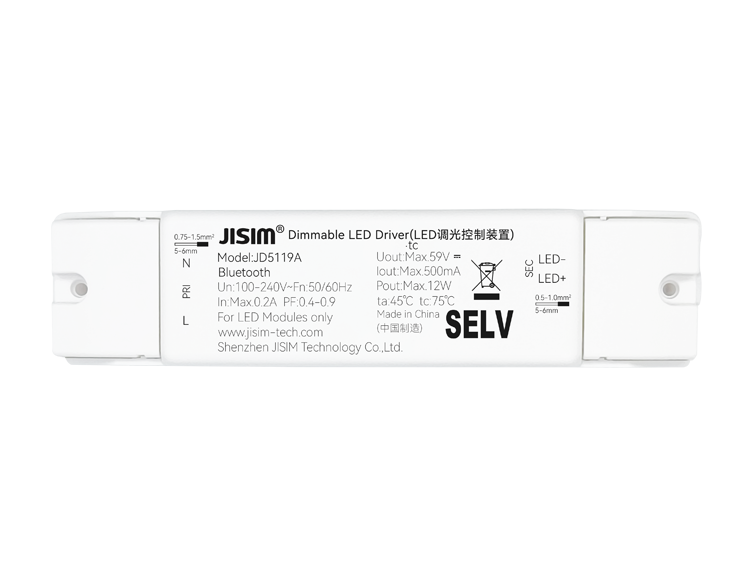

JD5119A Bluetooth 12W 150-500mA 100-240VAC DIP

Compact design,suitable for small‑aperture downlight‑spotlights and linear lights
Dimmable CC driver,100‑240V~ input,high power factor,high efficiency,long service life
Bluetooth communication,developed based on Mijia platform,strong networking capability
Smooth high‑performance dimming,flicker‑free and noise‑free
Dimming range 0.5…100%,built‑in soft‑start function
Works with Mijia App,supports Xiaoai voice control and Xiaomi HyperConnect
Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Complies with safety extra‑low‑voltage standard
Screw‑locking terminal blocks for input and output
Ambient temperature‑20～+45℃,maximum case temperature 75℃
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD5119A
Rated Voltage

100-240Vac
Output Current

150-500mA
Product Dimension

126*30*20mm
Dimming Mode

Bluetooth
Dimming Range

0.5-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:67±10g/pcs,Small Pack:78.2g/pcs,Inner Pack:6.56kg/carton,Outer Pack:27.1kg/carton
Packaging

Inner Pack:80pcs/carton,Outer Pack:320pcs/carton
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.12W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
