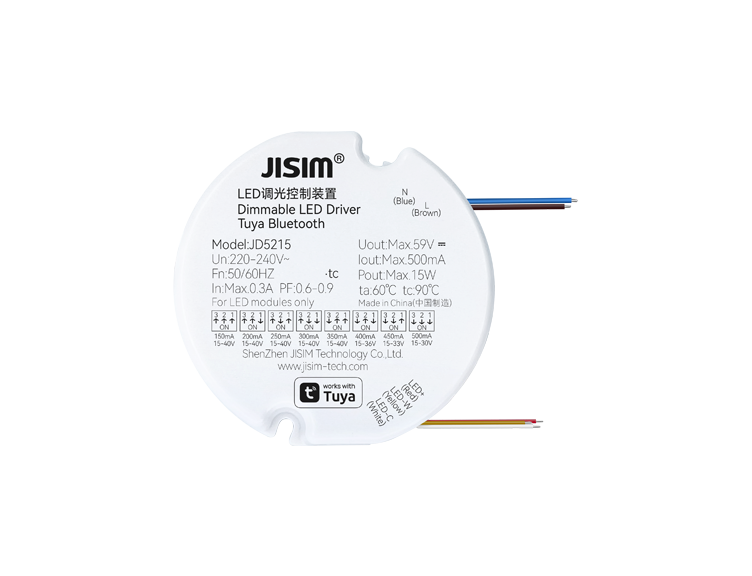

JD5215 Tuya Bluetooth 15W 150-500mA 220-240VAC DIP

Compact design, suitable for surface‑mount downlight, spotlight, track lamp, wall lamp
Built‑in driver application, external Ipex antenna
Dimmable & CCT‑tunable CC driver, high power factor, high efficiency and long service life
Bluetooth communication, developed based on Tuya platform with strong networking capability
Smooth high‑performance dimming, flicker‑free and noise‑free
Dimming range 1…100%, built‑in soft‑start function
Support control by Tmall Genie, Baidu Xiaodu, Xiao Ai, Smart Steward, Tencent Weixiao, Tencent Dingdang and JD Dingdong

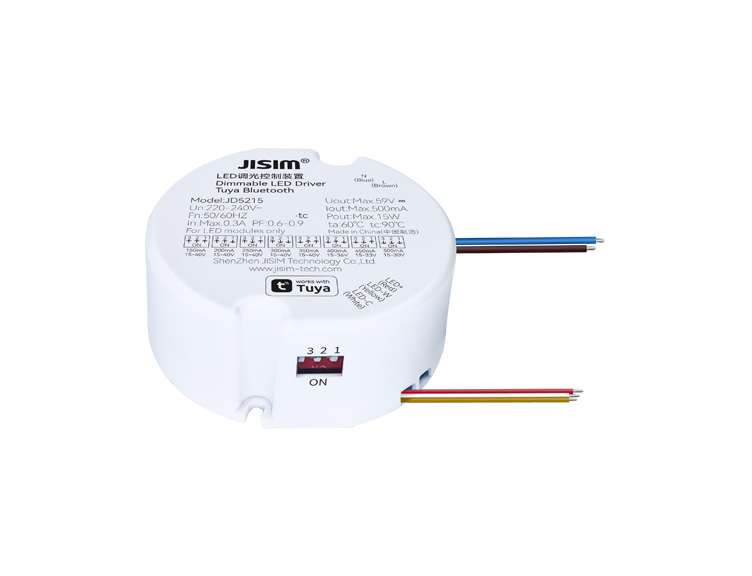

Select output current via DIP switch
Output short‑circuit, open‑circuit and overload protection
Complies with SELV standard
Lead‑type input and output terminals
Ambient temperature: -20～+60℃, maximum enclosure temperature 90℃
Internal potting sealing of product, enhanced protection for lamps requiring waterproof and moisture‑proof performance
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD5215
Rated Voltage

220-240Vac
Output Current

150-500mA
Product Dimension

55*53*23mm
Dimming Mode

Tuya Bluetooth
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:85.5±10g/pcs,Small Pack:95.6g/pcs,Inner Pack:6.6kg/carton,Outer Pack:27.3kg/carton
Packaging

Inner Pack:66pcs/carton,Outer Pack:264pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.15W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
