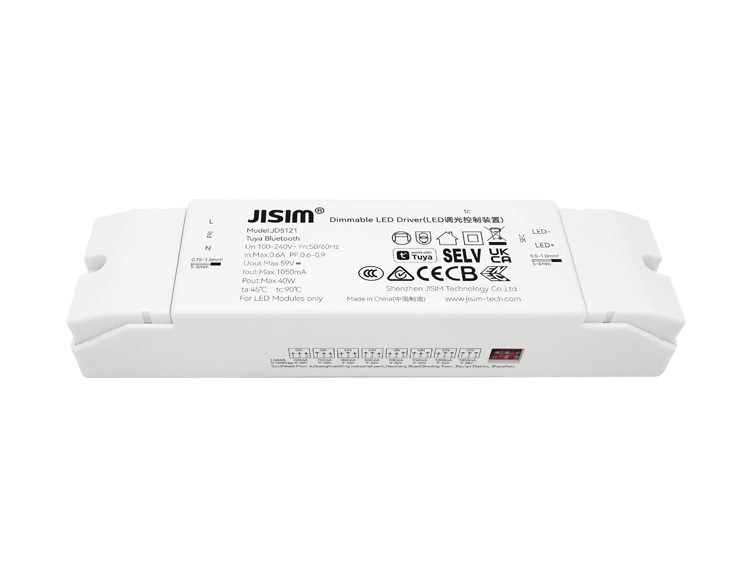

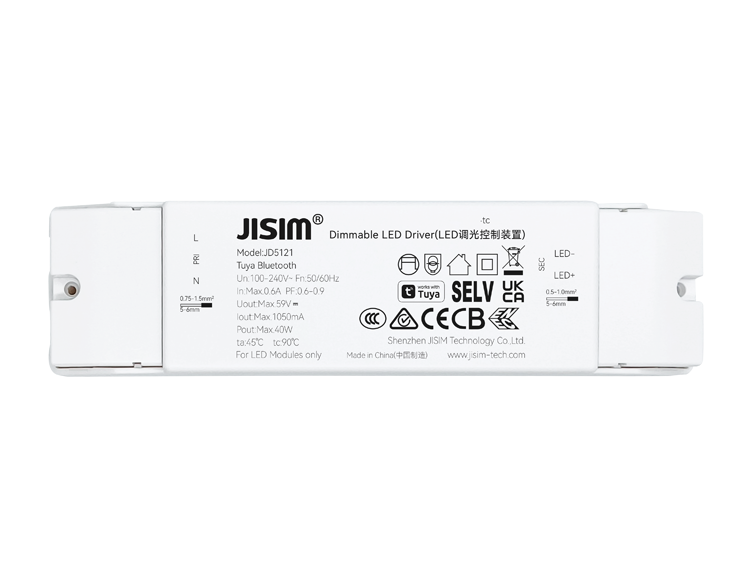

JD5121 Tuya Bluetooth 40W 750-1050mA 100-240VAC DIP

HomeProductBluetooth

JD5121 Tuya Bluetooth 40W 750-1050mA 100-240VAC DIP

Product Features

Compact‑size design, suitable for small‑aperture downlight & spotlight, linear light
Dimmable constant‑current driver, 100‑240V~ input, high power factor, high efficiency, long service life
Bluetooth communication, developed based on Tuya platform with powerful networking capability
Smooth high‑performance dimming, flicker‑free, noise‑free
Dimming range: 1…100%, built‑in soft‑start function
Compatible with voice control: Tmall Genie, Baidu Duer, Xiaoai, Zhixiao Butler, Tencent Xiaowei, Tencent Dingdang, JD Dingdong
Select output current via DIP switch
Output short‑circuit, open‑circuit and overload protection
Compliant with extra‑low safety voltage standard
Screw‑locking terminal blocks for input and output
Ambient temperature: -20～+45℃, maximum case temperature: 90℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection class Ⅱ

Consult Now Buy Now

Model Number

JD5121
Rated Voltage

100-240Vac
Output Current

750-1050mA
Product Dimension

165*42*30mm
Dimming Mode

Tuya Bluetooth
Dimming Range

1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net weight: 190.4±10g/pcs, Small‑pack: 207.4g/pcs, Middle carton: 6.5kg/case, Big carton: 26.99kg/case
Packaging

Middle carton: 30pcs/case, Big carton: 120pcs/case
Output Channel

DIM
IP Rating

IP20
Working Mode

CC
Output Power

Max.40W
Output Voltage

9-40V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MΩ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
