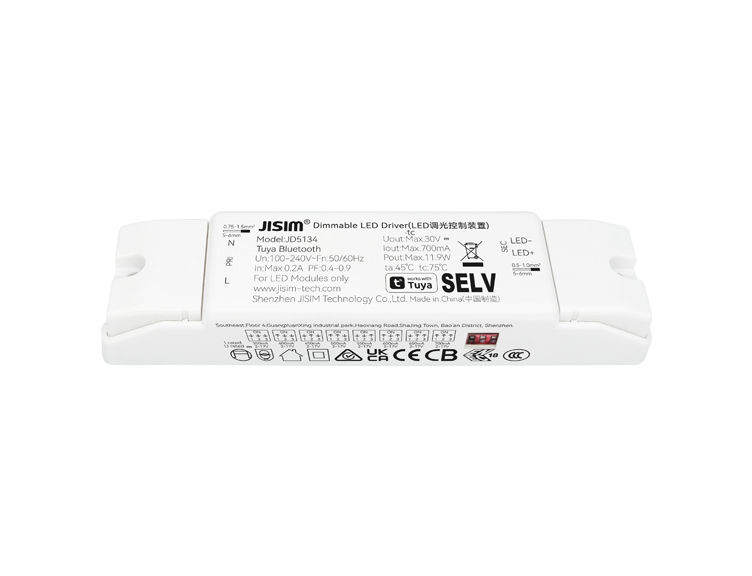

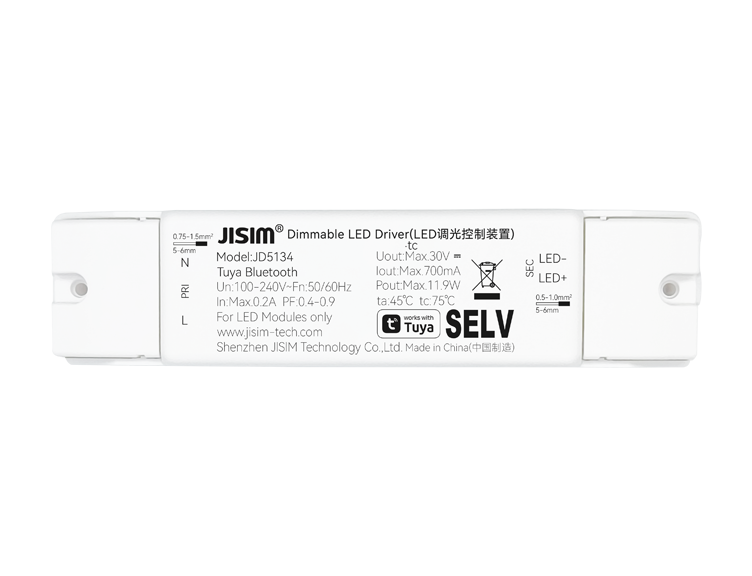

JD5134 Tuya Bluetooth 11.9W 350-700mA 100-240VAC DIP
HomeProductBluetooth

JD5134 Tuya Bluetooth 11.9W 350-700mA 100-240VAC DIP

Product Features

  • Compact design, suitable for small cut‑out downlight&spotlight, linear lamp
  • Dimmable CC driver, 100‑240V~ input, high power factor, high efficiency and long service life
  • Bluetooth communication, developed based on Tuya platform with strong networking capability
  • Smooth high‑performance dimming, flicker‑free and noise‑free
  • Dimming range 1…100%, built‑in soft‑start function
  • Support control by Tmall Genie, Baidu Xiaodu, Xiao Ai, Smart Steward, Tencent Weixiao, Tencent Dingdang and JD Dingdong
  • Select output current via DIP switch
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with SELV standard
  • Screw‑locking terminal blocks for input and output
  • Ambient temperature: -20～+45℃, maximum enclosure temperature 75℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD5134
  • Rated Voltage
    100-240Vac
  • Output Current
    350-700mA
  • Product Dimension
    126*30*20mm
  • Dimming Mode
    Tuya Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:65.7±10g/pcs,Small Pack:76.1g/pcs,Inner Pack:6.39kg/carton,Outer Pack:26.45kg/carton
  • Packaging
    Inner Pack:80pcs/carton,Outer Pack:320pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.11.9W
  • Output Voltage
    2-17V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    75℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
