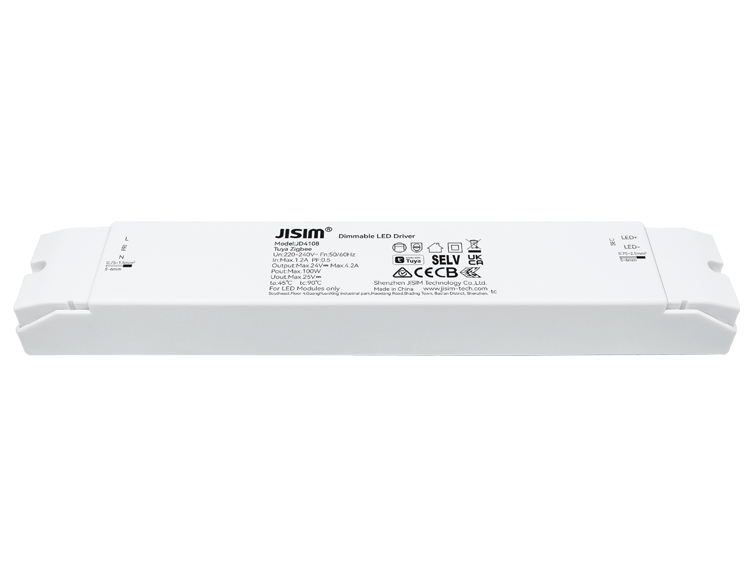

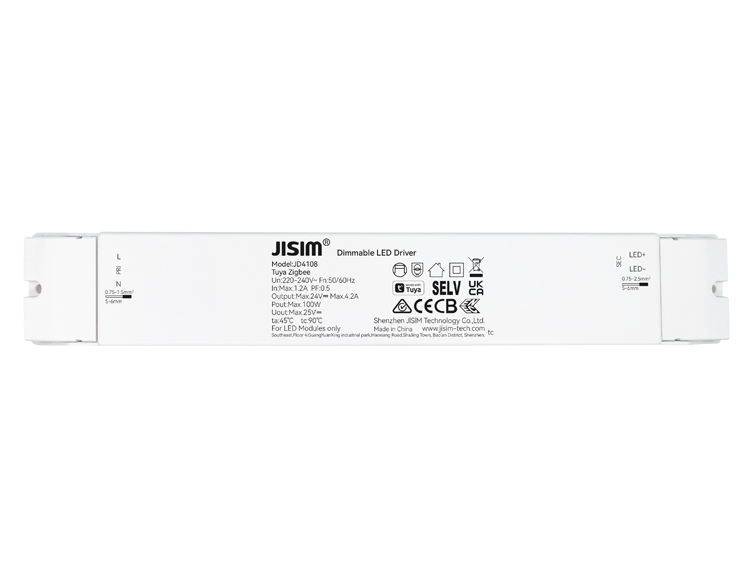

JD4108 ZigBee 100W 4.2A 220-240VAC DIP
HomeProductZigBee

JD4108 ZigBee 100W 4.2A 220-240VAC DIP

Product Features

  • External design, suitable for LED strip, ribbon light, linear light, light film, magnetic track light, decorative light
  • Dimmable constant‑voltage driver, full power, high efficiency, long service life
  • ZigBee communication, developed based on Tuya platform with powerful networking capability
  • Smooth high‑performance dimming, flicker‑free, noise‑free
  • Dimming range: 1…100%, built‑in soft‑start function
  • Compatible with voice control: Tmall Genie, Baidu Duer, Xiaoai, Zhixiao Butler, Tencent Xiaowei, Tencent Dingdang, JD Dingdong
  • Output short‑circuit, open‑circuit and overload protection
  • Compliant with extra‑low safety voltage standard
  • Screw‑locking terminal blocks for input and output
  • Ambient temperature: -20～+45℃, maximum case temperature: 90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection class Ⅱ
Consult Now Buy Now
  • Model Number
    JD4108
  • Rated Voltage
    220-240Vac
  • Output Current
    4.2A
  • Product Dimension
    265*42*30mm
  • Dimming Mode
    ZigBee
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net weight: 255.2±10g/pcs, Small‑pack: 284.5g/pcs, Middle carton: 4.57kg/case, Big carton: 19.17kg/case
  • Packaging
    Middle carton: 15pcs/case, Big carton: 60pcs/case
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.100W
  • Output Voltage
    24V
  • PF
    >0.5
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MΩ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
