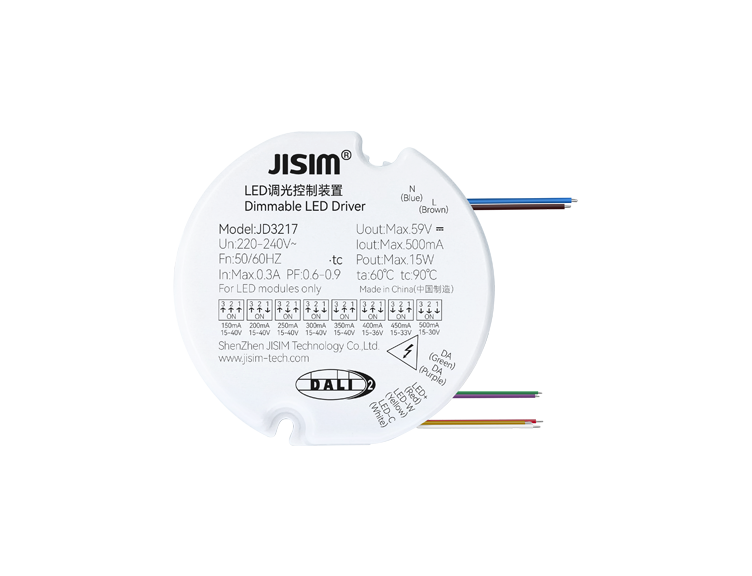

JD3217 DALI DT8 15W 150-500mA 220-240VAC DIP

Compact design, suitable for surface mounted downlight, spotlight, track light, wall light
Built‑in driver application
Dimmable CCT‑tunable CC driver, high power factor, high efficiency and long service life
Supports DALI‑2 DT8 dimming and color temperature tuning
Flicker‑free, noise‑free
Smooth high‑performance dimming, compatible with more DALI masters
Dimming range 0.1…100%, color temperature range: warmest light…coolest light, built‑in soft‑start function

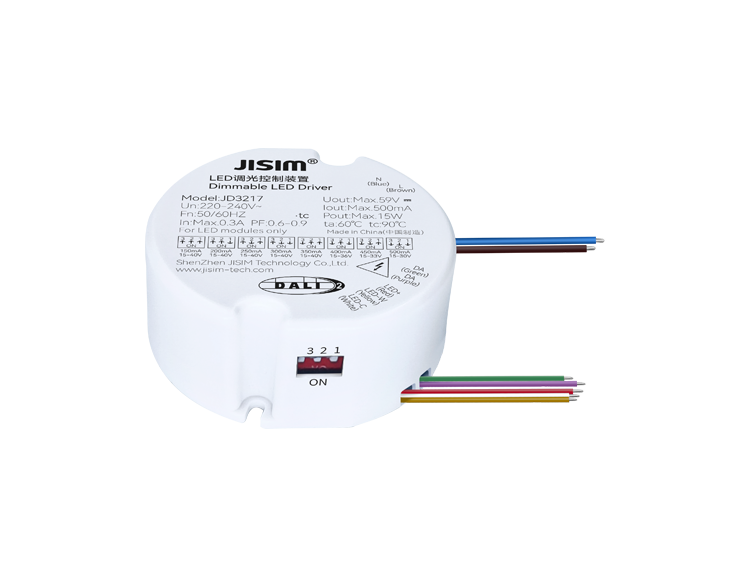

Select output current via DIP switch
Output short‑circuit, open‑circuit and overload protection
Dimming port isolated, output complies with SELV standard
Lead‑type input and output terminals
Ambient temperature: -20～+60℃, maximum enclosure temperature 90℃
Internally potted and sealed, provides enhanced protection for lamps requiring waterproof and moisture‑proof performance
Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD3217
Rated Voltage

220-240Vac
Output Current

150-500mA
Product Dimension

55*53*23mm
Dimming Mode

DALI DT8
Dimming Range

0.1-100%
Protection

Output short‑circuit, open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:86.4±10g/pcs,Small Pack:98.1g/pcs,Inner Pack:7.17kg/carton,Outer Pack:29.57kg/carton
Packaging

Inner Pack:66pcs/carton,Outer Pack:264pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CC
Output Power

Max.15W
Output Voltage

15-42V
PF

>0.9
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built‑in
Warranty

5 years
