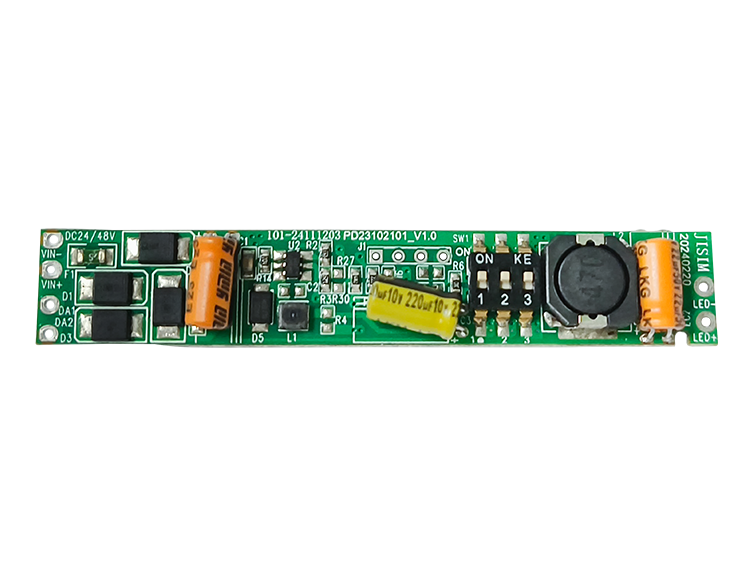

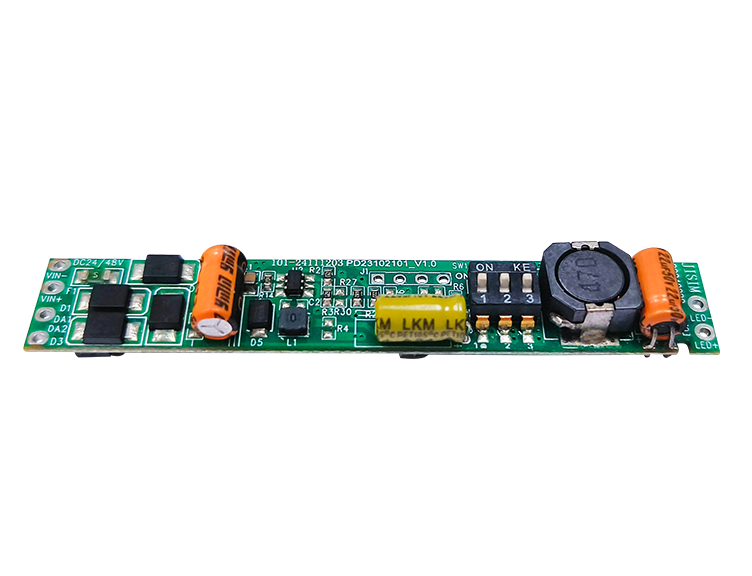

JD3136 DALI DT6 36W 550-900mA 48VDC DIP

HomeProductDALI-2

JD3136 DALI DT6 36W 550-900mA 48VDC DIP

Product Features

Compact design,suitable for magnetic track light
Dimmable CC driver,high efficiency,long service life
Supports DALI‑2+Push dimming
Bipolar architecture design,built‑in MCU,unique dimming algorithm,flicker‑free and noise‑free
Smooth high‑performance dimming,compatible with more DALI masters
Dimming range 0.1…100%,built‑in soft‑start function
Select output current via DIP switch
Output short‑circuit,open‑circuit and overload protection
Ambient temperature‑20～+45℃
Suitable for Class Ⅲ luminaires

Consult Now Buy Now

Model Number

JD3136
Rated Voltage

48V
Output Current

550-900mA
Product Dimension

76.5*13*8mA
Dimming Mode

DALI DT6
Dimming Range

0.1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20（with enclosure）
Frequency

50-60Hz
Weight

Net Weight:7±5g/pcs,Inner Pack:2.92kg/carton,Outer Pack:12.59kg/carton
Packaging

Inner Pack:210pcs/carton,Outer Pack:840pcs/carton
Output Channel

DIM
IP Rating

IP20（with enclosure）
Working Mode

CC
Output Power

Max.36W
Output Voltage

9-42V
PF

1
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

-
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

Non SELV
Installation Method

Magnetic built‑in
Warranty

5 years
