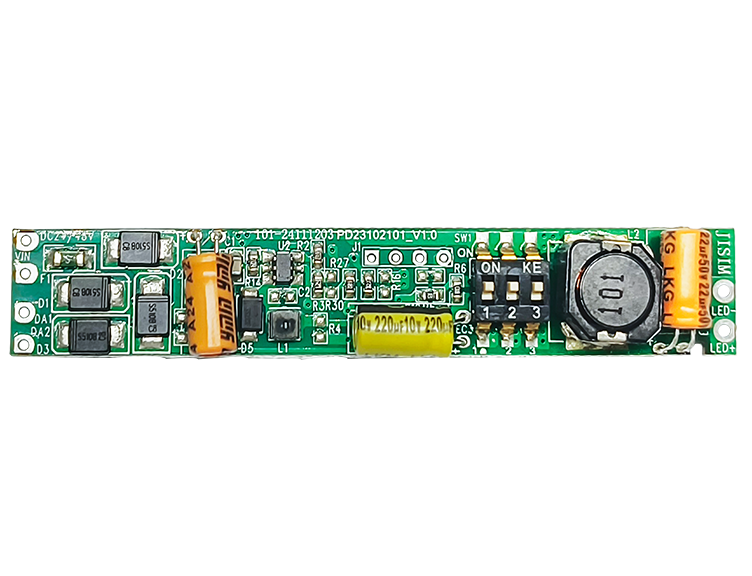

JD3135 DALI DT6 20W 150-500mA 48VDC DIP

Compact design, suitable for magnetic track lights
Dimmable CC driver, high efficiency and long service life
Supports DALI-2+Push dimming
Dual-stage architecture, built-in MCU with unique dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more DALI masters
Dimming range 0.1…100%, built-in soft-start function
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Ambient temperature: -20～+45℃
Suitable for Class Ⅲ luminaires

Consult Now Buy Now

Model Number

JD3135
Rated Voltage

48Vdc
Output Current

150-500mA
Product Dimension

76.5*13*8mm
Dimming Mode

DALI DT6
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Grade

IP20(带外壳）
Frequency

50-60Hz
Weight

Net Weight:7±5g/pcs, Inner Pack:2.92kg/carton, Outer Pack:12.59kg/carton
Packaging

Inner Pack:210pcs/carton, Outer Pack:840pcs/carton
Output Channel

DIM
IP Rating

IP20（with enclosure）
Working Mode

CC
Output Power

Max.20W
Output Voltage

9-42V
PF

1
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

-
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@ta<45℃
SELV

SELV 60V
Installation Method

Built-in
Warranty

5 years
