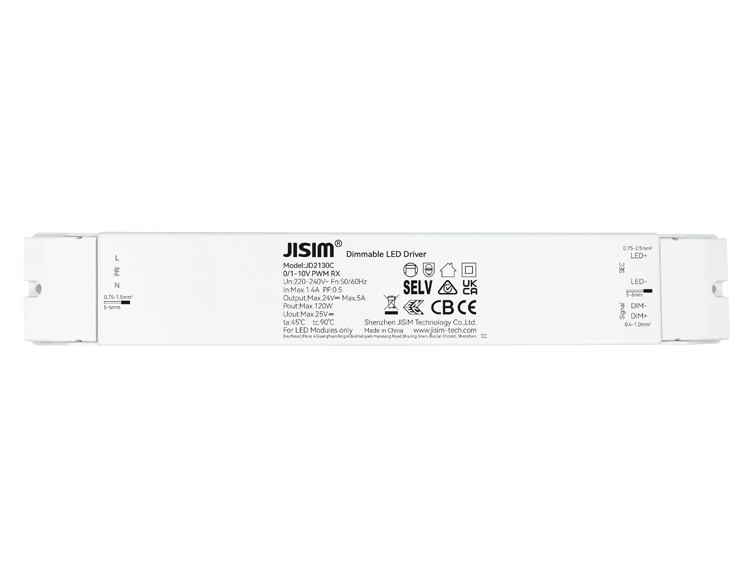

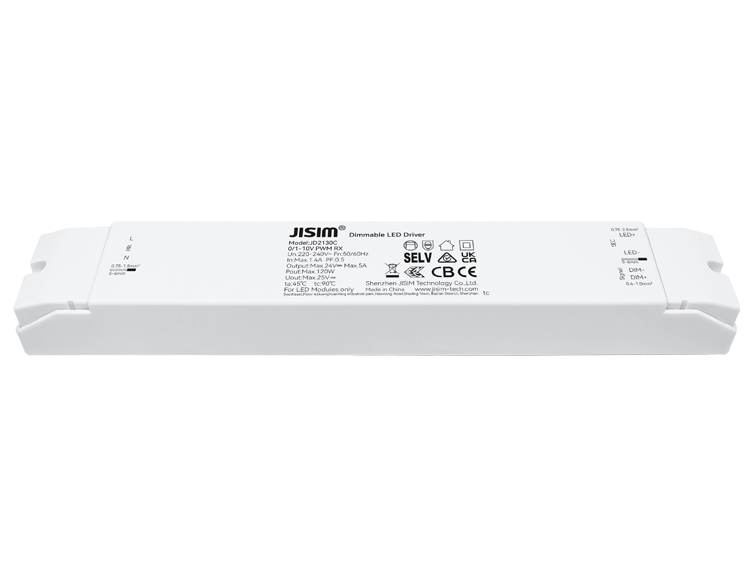

JD2130C 0/1-10V 120W 5A 220-240VAC DIP
HomeProduct0/1-10V PWM RX

JD2130C 0/1-10V 120W 5A 220-240VAC DIP

Product Features

  • 独立式设计，适用于LED灯带、灯条、线型灯、灯膜、磁吸灯、装饰灯
  • 可调光恒压驱动，足功率、高效率、长寿命
  • 适用于0-10V、1-10V、10V PWM、100K电位器调光
  • 内置MCU，独特的调光算法，无频闪，无噪声
  • 平滑高性能调光，匹配更多调光器
  • 调光范围0.1…100%，自带缓启动功能
  • 输出短路、开路、过载保护
  • 调光口隔离,输出符合安全特低电压标准
  • 符合安全特低电压标准
  • 输入输出螺丝锁紧接线端子
  • 环境温度-20～+45℃，最大外壳温度90℃
  • 适用于ⅠⅡⅢ类灯具
  • 保护等级Ⅱ
Consult Now Buy Now
  • Model Number
    JD2130C
  • Rated Voltage
    220-240Vac
  • Output Current
    5A
  • Product Dimension
    265*42*30mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    输出短路、开路、过载保护
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    净重：261±10g/pcs, 小包: 291g/pcs, 中包:4.67kg/箱, 大包: 19.56kg/箱
  • Packaging
    中包：15pcs箱，大包:60pcs/箱
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    恒压
  • Output Power
    120W
  • Output Voltage
    24V
  • PF
    >0.5
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    输入对输出:3750Vac,5mA,60s
  • Insulation Resistance
    输入对输出:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    独立式
  • Warranty
    5年
