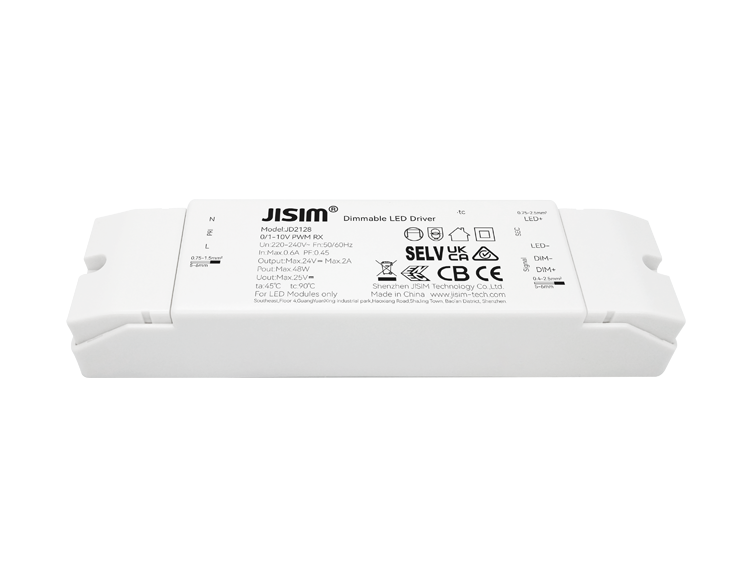

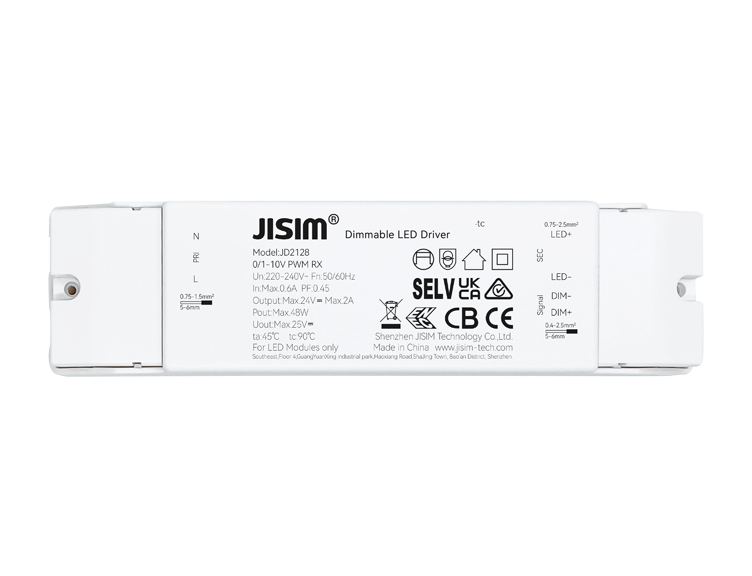

JD2128 0/1-10V 48W 2A 220-240VAC DIP
HomeProduct0/1-10V PWM RX

JD2128 0/1-10V 48W 2A 220-240VAC DIP

Product Features

  • Independent design,suitable for LED strip,linear light,light film,magnetic light,decorative light
  • Dimmable CV driver,full power,high efficiency,long service life
  • Suitable for 0‑10V,1‑10V,10V PWM,100K potentiometer dimming
  • Built‑in MCU,unique dimming algorithm,flicker‑free and noise‑free
  • Smooth high‑performance dimming,compatible with more dimmers
  • Dimming range 0.1…100%,built‑in soft‑start function
  • Output short‑circuit,open‑circuit and overload protection
  • Isolated dimming port,output complies with SELV standard
  • Complies with SELV standard
  • Screw‑locked terminals for input and output
  • Ambient temperature‑20～+45℃,maximum case temperature 90℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD2128
  • Rated Voltage
    220-240Vac
  • Output Current
    2A
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    0-10V PWM RX
  • Dimming Range
    0.1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:154.8±10g/pcs,Small Pack:180g/pcs,Inner Pack:5.7kg/carton,Outer Pack:23.7kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    48W
  • Output Voltage
    24V
  • PF
    >0.5
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@ta<45℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
