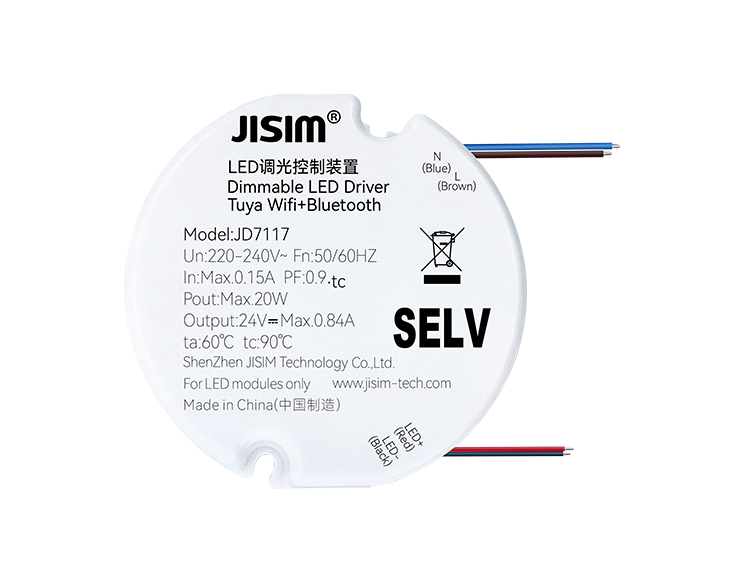

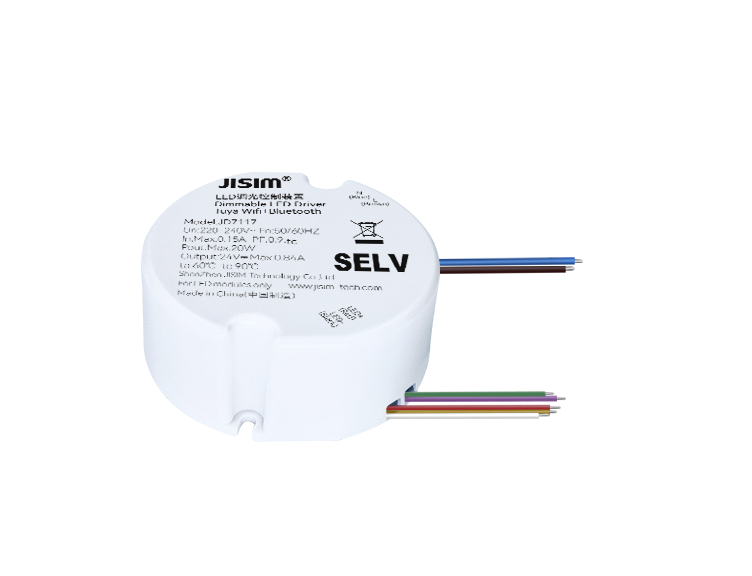

JD7117 Wifi+Bluetooth 20W 0.84A 220-240VAC DIP
HomeProductWIFI

JD7117 Wifi+Bluetooth 20W 0.84A 220-240VAC DIP

Product Features

  • Compact design, suitable for modern decorative lamps such as wall lamps, table lamps and pendant lamps
  • Built-in driver adoption, independent Ipex antenna
  • Dimmable CV driver, high power factor, high efficiency and long service life
  • Wifi+Bluetooth communication, developed based on Tuya platform with strong networking capability
  • Smooth high-performance dimming, flicker-free and noise-free
  • Dimming range 1…100%, built-in soft-start function
  • Compatible with Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Weixiao, Tencent Dingdang and JD Dingdong
  • Output short-circuit, open-circuit and overload protection
  • Complies with SELV standard
  • Lead type for input and output terminals
  • Ambient temperature: -20～+60℃, maximum case temperature 90℃
  • Internal potted sealing of the product, providing enhanced protection for lamps requiring waterproof and moisture-proof performance
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD7117
  • Rated Voltage
    220-240Vac
  • Output Current
    0.85A
  • Product Dimension
    55*53*23mm
  • Dimming Mode
    Wifi+Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:85.9±10g/pcs, Small Pack:95.9g/pcs, Inner Pack:7kg/carton, Outer Pack:28.9kg/carton
  • Packaging
    Inner Pack:66pcs/carton, Outer Pack:264pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    20W
  • Output Voltage
    24V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >30000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Built-in
  • Warranty
    5 years
