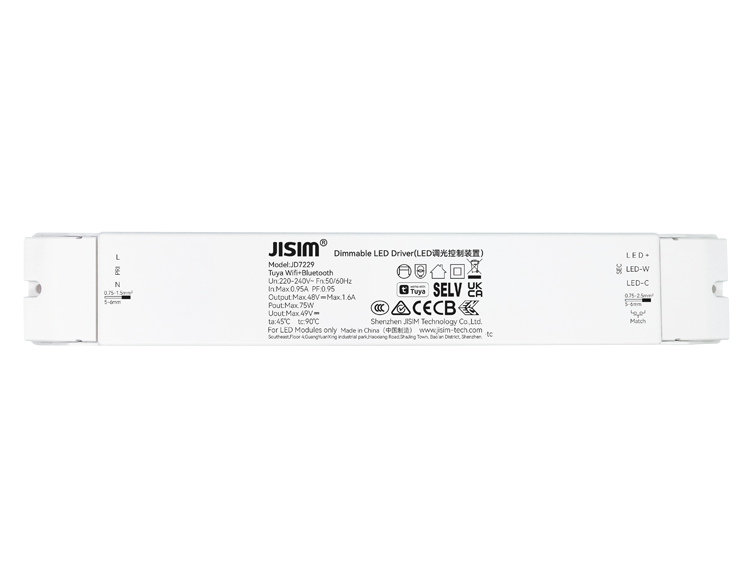

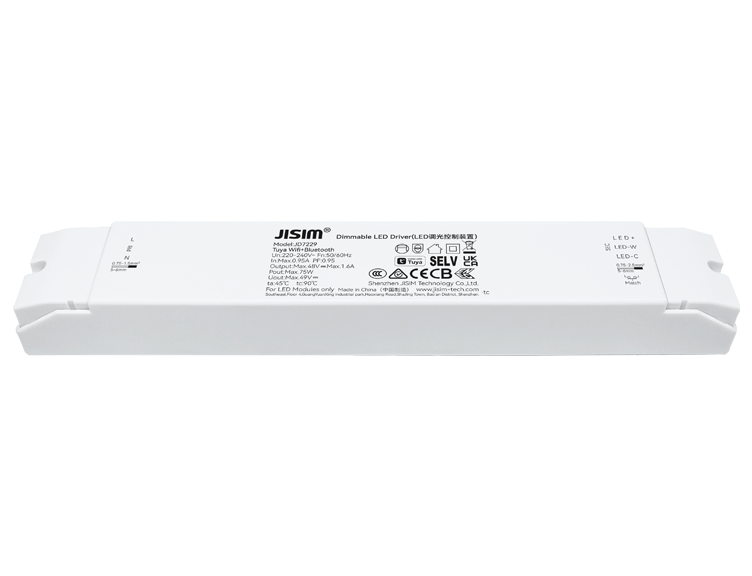

JD7229 Wifi+Bluetooth 75W 1.6A 220-240VAC DIP

HomeProductWIFI

JD7229 Wifi+Bluetooth 75W 1.6A 220-240VAC DIP

Product Features

独立式设计，适用于LED灯带、灯条、线型灯、灯膜、磁吸灯、装饰灯
可调光调色恒压驱动，足功率、高功率因数、高效率、长寿命
Wifi+蓝牙通信，基于涂鸦平台开发，组网能力强
平滑高性能调光，无频闪，无噪声
调光范围1…100%，自带缓启动功能
支持天猫精灵、百度小度、小米小爱、小智管家、腾讯小微、腾讯叮当及京东叮咚等控制
输出短路、开路、过载保护
符合安全特低电压标准
输入输出螺丝锁紧接线端子
环境温度-20～+45℃，最大外壳温度90℃
适用于ⅠⅡⅢ类灯具
保护等级Ⅱ

Consult Now Buy Now

Model Number

JD7229
Rated Voltage

220-240Vac
Output Current

1.6A
Product Dimension

265*42*30mm
Dimming Mode

Wifi+Bluetooth
Dimming Range

1-100%
Protection

输出短路、开路、过载保护
Protection Grade

IP20
Frequency

50-60Hz
Weight

净重：255.2±10g/pcs, 小包: 284.5g/pcs, 中包: 4.57kg/箱, 大包: 19.17kg/箱
Packaging

中包：15pcs/箱，大包:60pcs/箱
Output Channel

3CCT
IP Rating

IP20
Working Mode

恒压
Output Power

Max.75W
Output Voltage

48V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

输入对输出:3750Vac,5mA,60s
Insulation Resistance

输入对输出:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

独立式
Warranty

5年
