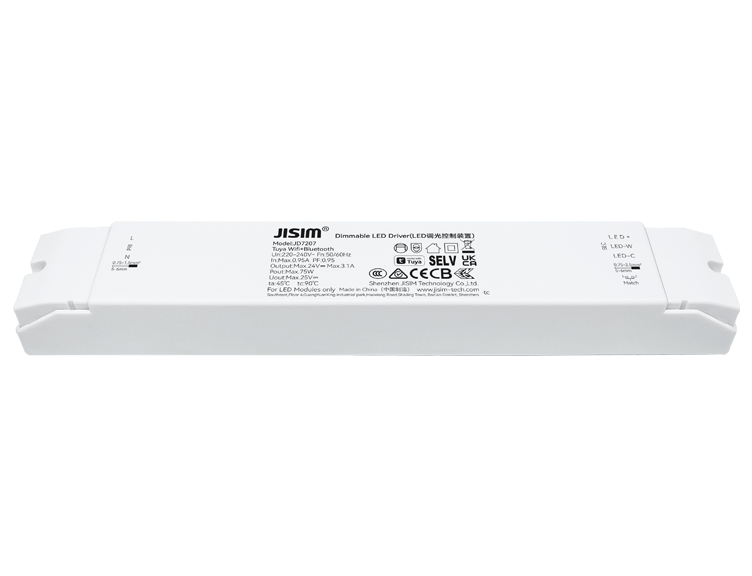

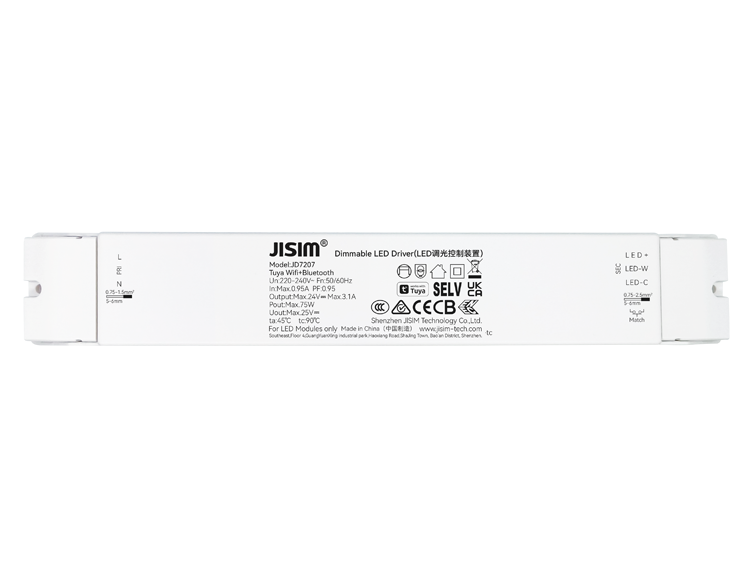

JD7207 Wifi+Bluetooth 75W 3.1A 220-240VAC DIP

HomeProductWIFI

JD7207 Wifi+Bluetooth 75W 3.1A 220-240VAC DIP

Product Features

Independent design,suitable for LED strip,ribbon light,linear light,light film,magnetic track light,decorative light
Dimmable color‑tunable constant‑voltage driver,full power,high power factor,high efficiency,long service life
Wifi+Bluetooth communication,developed based on Tuya platform,strong networking capability
Smooth high‑performance dimming,flicker‑free and noise‑free
Dimming range 1…100%,with soft‑start function
Compatible with Tmall Genie,Baidu Xiaodu,Xiaomi AI,Xiaozhi管家,Tencent WeChat Mini,Tencent Dingdong,JD Dingdong and other voice control
Output short‑circuit,open‑circuit and overload protection
Complies with SELV standard
Input and output screw‑locking terminals
Ambient temperature‑20～+45℃,maximum case temperature 90℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Model Number

JD7207
Rated Voltage

220-240Vac
Output Current

3.1A
Product Dimension

265*42*30mm
Dimming Mode

Wifi+Bluetooth
Dimming Range

1-100%
Protection

Output short‑circuit,open‑circuit and overload protection
Protection Grade

IP20
Frequency

50-60Hz
Weight

Net Weight:255.2±10g/pcs,Small Pack:284.5g/pcs,Inner Pack:4.57kg/carton,Outer Pack:19.17kg/carton
Packaging

Inner Pack:15pcs/carton,Outer Pack:60pcs/carton
Output Channel

3CCT
IP Rating

IP20
Working Mode

CV
Output Power

Max.75W
Output Voltage

24V
PF

>0.95
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Maximum Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standards

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Service Life

>50000h@tc=90℃
SELV

SELV 60V
Installation Method

Independent
Warranty

5 years
