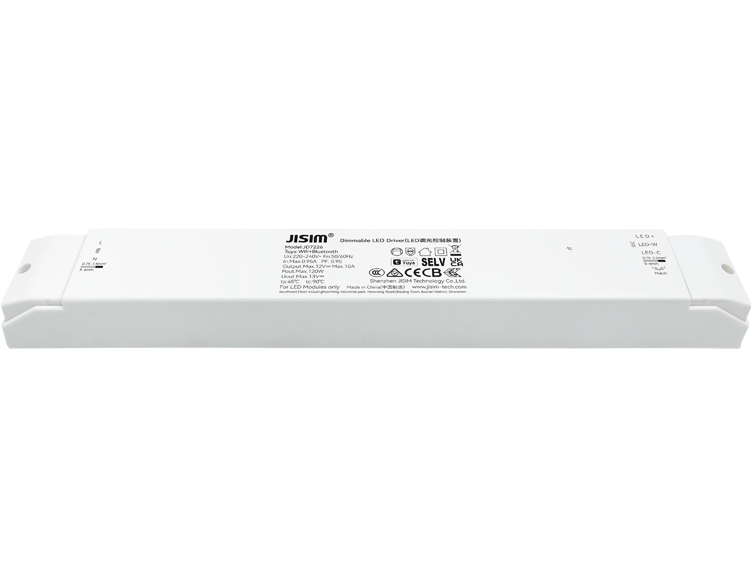

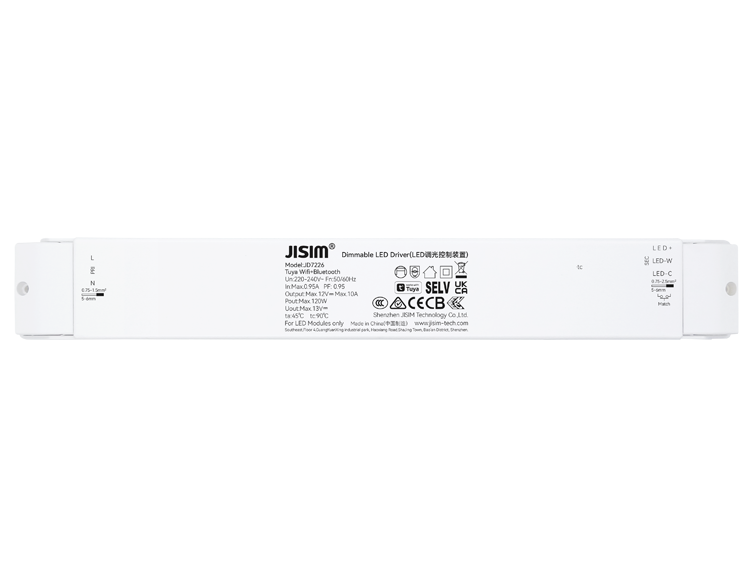

JD7226 Wifi+Bluetooth 120W 10A 220-240VAC DIP
HomeProductWIFI

JD7226 Wifi+Bluetooth 120W 10A 220-240VAC DIP

Product Features

  • Independent design, suitable for LED strip, LED bar, linear light, light film, magnetic track light, decorative light
  • Dimmable color‑tunable CV driver, full power, high power factor, high efficiency and long service life
  • Wifi+Bluetooth communication, developed based on Tuya platform, strong networking capability
  • Smooth high‑performance dimming, flicker‑free, noise‑free
  • Dimming range 1…100%, built‑in soft‑start function
  • Compatible with Tmall Genie, Baidu Duer, Xiaomi Xiaoai, Smart Home Manager, Tencent Xiaowei, Tencent Dingdang and JD Dingdong control
  • Output short‑circuit, open‑circuit and overload protection
  • Complies with SELV standard
  • Screw‑lock input and output terminals
  • Ambient temperature: -20～+45℃, maximum enclosure temperature 90℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD7226
  • Rated Voltage
    220-240Vac
  • Output Current
    6.3A
  • Product Dimension
    325*44*30mm
  • Dimming Mode
    Wifi+Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit, open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:382.1±10g/pcs,Small Pack:415.8g/pcs,Inner Pack:5.7kg/carton,Outer Pack:23.7kg/carton
  • Packaging
    Inner Pack:13pcs/carton,Outer Pack:52pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.120W
  • Output Voltage
    12V
  • PF
    >0.95
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
