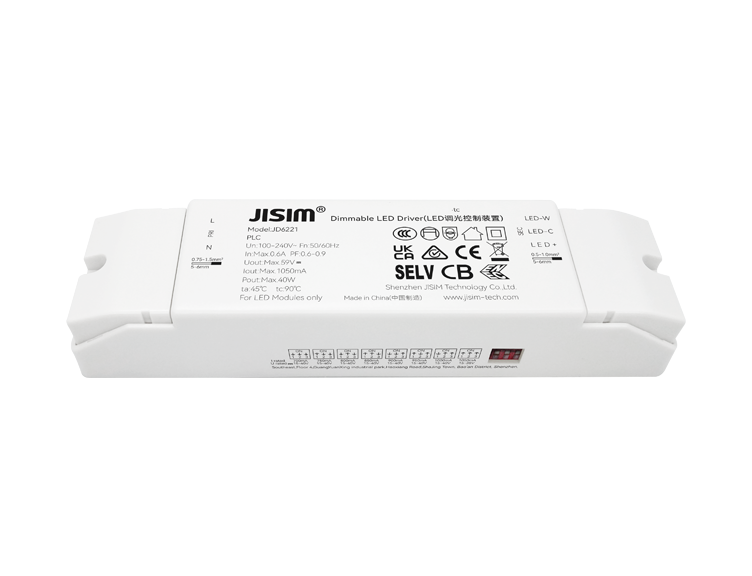

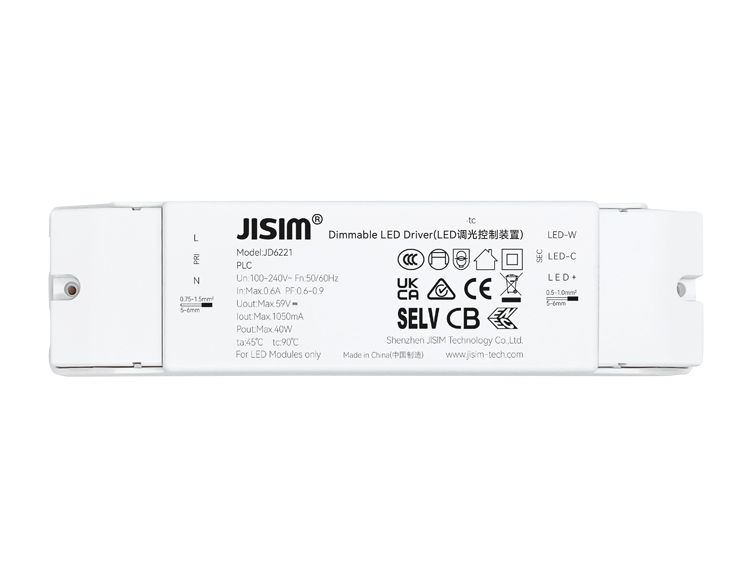

JD6221 PLC 40W 700-1050mA 100-240VAC DIP
HomeProductPLC

JD6221 PLC 40W 700-1050mA 100-240VAC DIP

Product Features

  • Compact design,suitable for small cut‑out downlight & spotlight,linear light
  • Dimmable color‑tunable constant‑current driver,high power factor,high efficiency,long service life
  • Power‑line carrier communication,developed based on PLC platform,strong networking capability
  • Smooth high‑performance dimming,flicker‑free and noise‑free
  • Dimming range 0.1…100%,with soft‑start function
  • Supported control via Tuya Smart App
  • Select output current via DIP switch
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with SELV standard
  • Input and output screw‑locking terminals
  • Ambient temperature ‑20～+45℃,maximum case temperature 90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD6221
  • Rated Voltage
    220-240Vac
  • Output Current
    700-1050mA
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    PLC
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:189.2±10g/pcs,Small Pack:206.3g/pcs,Inner Pack:6.49kg/carton,Outer Pack:26.86kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.40W
  • Output Voltage
    15-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
