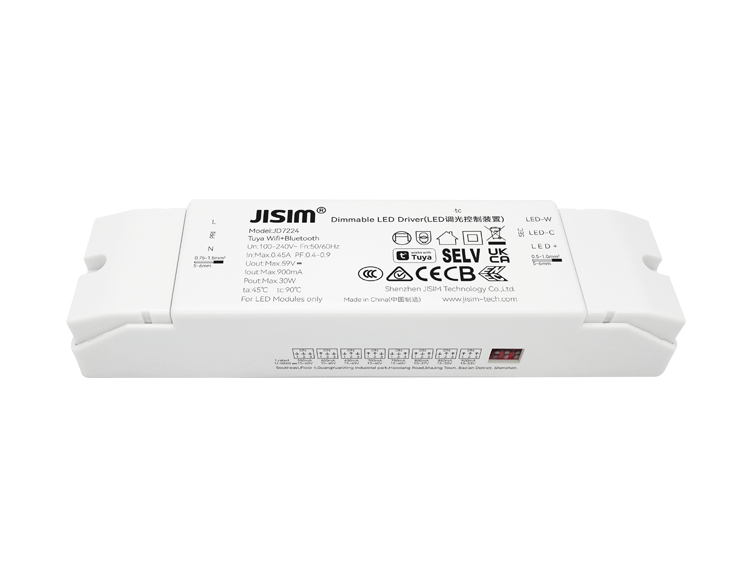

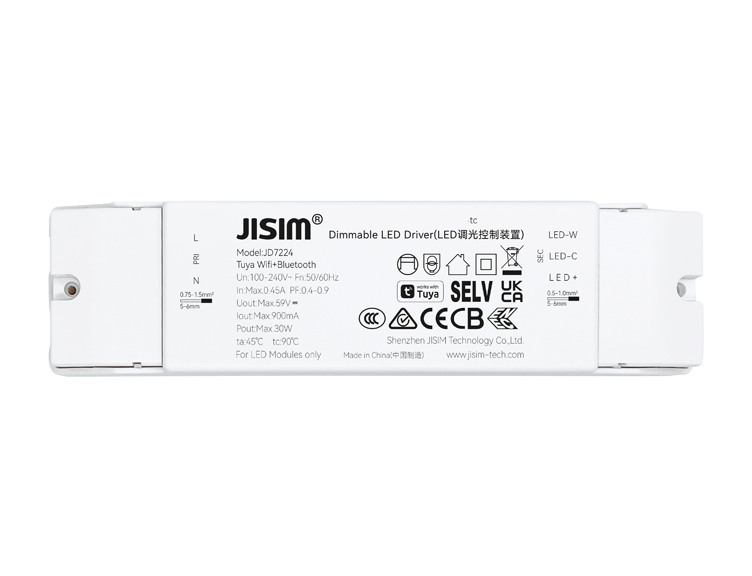

JD7224 Wifi+Bluetooth 240W 10A 220-240VAC DIP
HomeProductWIFI

JD7224 Wifi+Bluetooth 240W 10A 220-240VAC DIP

Product Features

  • Compact design,suitable for small‑aperture downlight,linear light
  • Dimmable CCT‑tunable CC driver,high power factor,high efficiency,long service life
  • Wifi+Bluetooth communication,developed on Tuya platform,strong networking capability
  • Smooth high‑performance dimming,flicker‑free and noise‑free
  • Dimming range 1…100%,built‑in soft‑start function
  • Compatible with Tmall Genie,Baidu Xiaodu,Mi Xiaoai,Smart Steward,Tencent Weixiao,Tencent Dingdong and JD Dingdong
  • Select output current via DIP‑switch
  • Output short‑circuit,open‑circuit and overload protection
  • Complies with SELV standard
  • Screw‑locked terminals for input and output
  • Ambient temperature‑20～+45℃,maximum case temperature 90℃
  • Suitable for Class Ⅰ Ⅱ Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD7224
  • Rated Voltage
    100-240Vac
  • Output Current
    550-900mA
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    Wifi+Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short‑circuit,open‑circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:187.7±10g/pcs,Small Pack:204.8g/pcs,Inner Pack:6.4kg/carton,Outer Pack:26.7kg/carton
  • Packaging
    Inner Pack:30pcs/carton,Outer Pack:120pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CC
  • Output Power
    Max.30W
  • Output Voltage
    15-40V
  • PF
    >0.9
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
