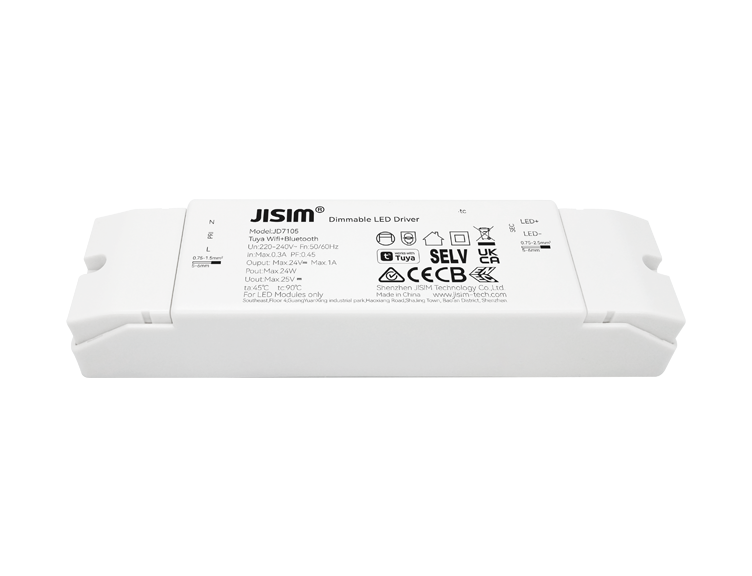

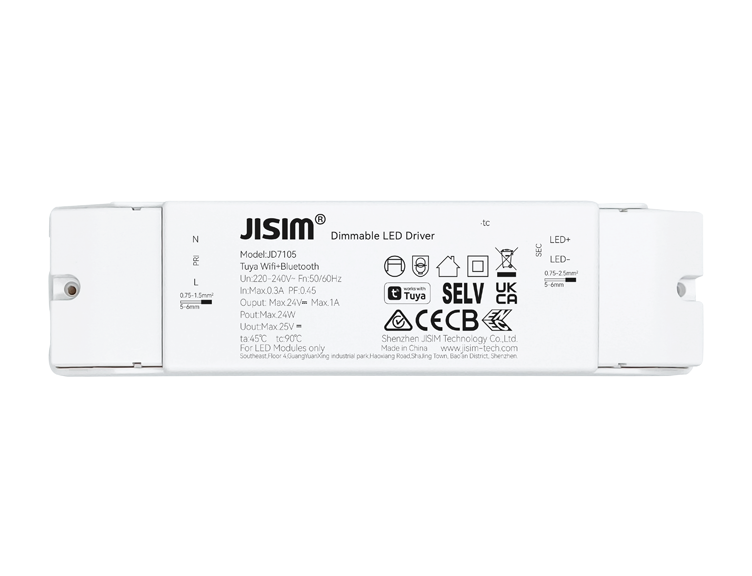

JD7105 Wifi+Bluetooth 24W 1A 220-240VAC DIP
HomeProductWIFI

JD7105 Wifi+Bluetooth 24W 1A 220-240VAC DIP

Product Features

  • Independent design, suitable for LED strips, light bars, linear lights, light films, magnetic lights and decorative lamps
  • Dimmable CV driver, full power, high efficiency and long service life
  • Wifi+Bluetooth communication, developed based on Tuya platform with strong networking capability
  • Smooth high-performance dimming, flicker-free and noise-free
  • Dimming range 1…100%, built-in soft-start function
  • Compatible with Tmall Genie, Baidu Xiaodu, Xiaomi Xiaoai, Xiaozhi Butler, Tencent Weixiao, Tencent Dingdang and JD Dingdong
  • Output short-circuit, open-circuit and overload protection
  • Complies with SELV standard
  • Screw-locked terminals for input and output
  • Ambient temperature: -20～+45℃, maximum case temperature 90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD7105
  • Rated Voltage
    220-240Vac
  • Output Current
    1A
  • Product Dimension
    165*42*30mm
  • Dimming Mode
    Wifi+Bluetooth
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:153.1±10g/pcs, Small Pack:169.9g/pcs, Inner Pack:5.4kg/carton, Outer Pack:22.5kg/carton
  • Packaging
    Inner Pack:30pcs/carton, Outer Pack:120pcs/carton
  • Output Channel
    DIM
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.24W
  • Output Voltage
    24V
  • PF
    >0.5
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
