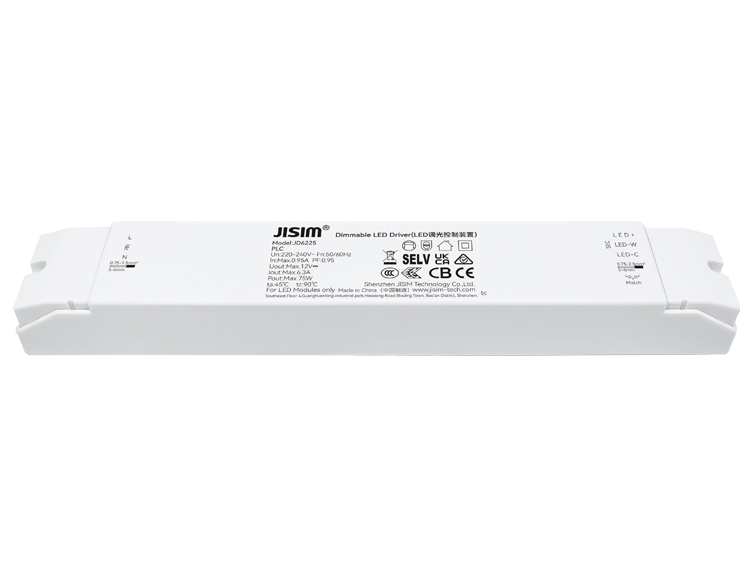

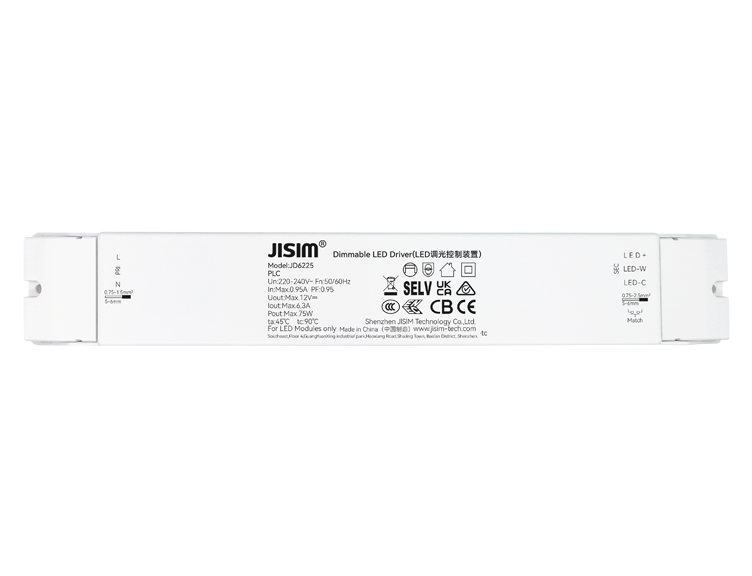

JD6225 PLC 75W 6.3A 220-240VAC DIP
HomeProductPLC

JD6225 PLC 75W 6.3A 220-240VAC DIP

Product Features

  • Independent design, suitable for LED strips, light bars, linear lights, light films, magnetic lights and decorative lights
  • Dimmable tunable CV driver, full power, high power factor, high efficiency and long service life
  • Power line communication, developed based on PLC platform with strong networking capability
  • Smooth high-performance dimming, flicker-free and noise-free
  • Dimming range 1…100%, built-in soft start function
  • Support Tuya Smart App control
  • Output short-circuit, open-circuit and overload protection
  • Compliant with SELV standard
  • Screw-locked terminals for input and output
  • Ambient temperature: -20～+45℃, maximum case temperature 90℃
  • Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Model Number
    JD6225
  • Rated Voltage
    220-240Vac
  • Output Current
    6.3A
  • Product Dimension
    265*42*30mm
  • Dimming Mode
    PLC
  • Dimming Range
    1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Grade
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight:255.2±10g/pcs, Small Pack:284.5g/pcs, Inner Pack:4.57kg/carton, Outer Pack:19.17kg/carton
  • Packaging
    Inner Pack:15pcs/carton, Outer Pack:60pcs/carton
  • Output Channel
    3CCT
  • IP Rating
    IP20
  • Working Mode
    CV
  • Output Power
    Max.75W
  • Output Voltage
    12V
  • PF
    >0.95
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Maximum Case Temperature
    90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standards
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Service Life
    >50000h@tc=90℃
  • SELV
    SELV 60V
  • Installation Method
    Independent
  • Warranty
    5 years
