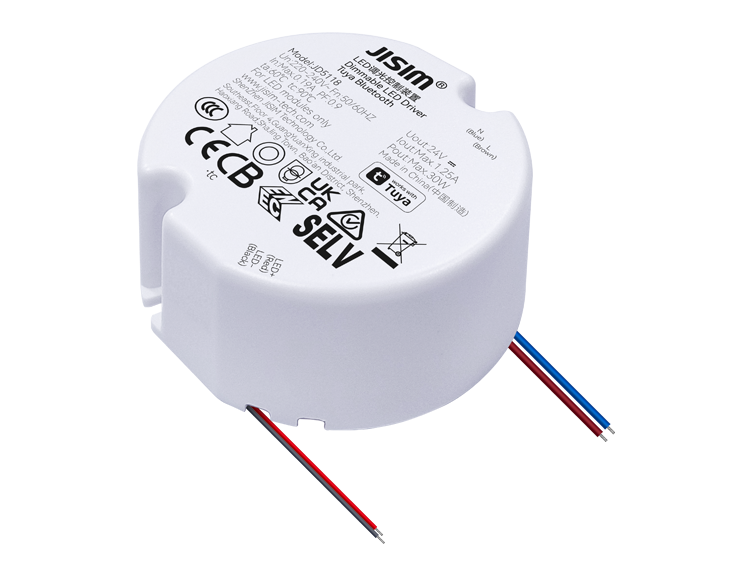

Bluetooth Built-in CV Series

Compact design, suitable for modern decorative luminaires such as wall lights, table lamps and pendant lights
Built-in driver application, independent IPEX antenna
Dimmable CV driver, high power factor, high efficiency, long service life
Bluetooth communication, developed based on MiJia platform with strong networking capability
Smooth high-performance dimming, flicker-free, noise-free
Dimming range 1…100%, built-in soft start function
Integrated with MiJia App, supports Xiao Ai voice control and Xiaomi HyperConnect
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internally potted and sealed, providing enhanced protection for luminaires requiring waterproof and moistureproof performance
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

Bluetooth
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 89.7±10g/pcs, Small Pack: 99.9g/pcs, Inner Pack: 6.89kg/carton, Outer Pack: 28.47kg/carton (See datasheet for details)
Package

Inner Pack: 66pcs/52pcs per carton, Outer Pack: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
