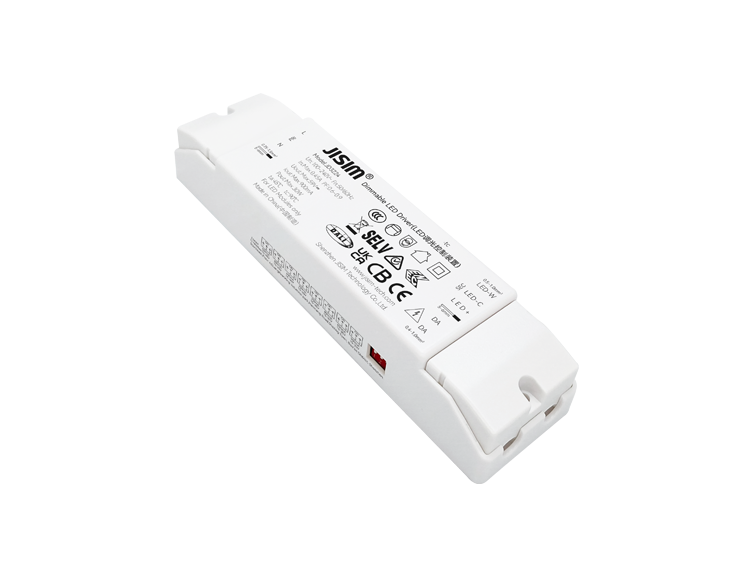

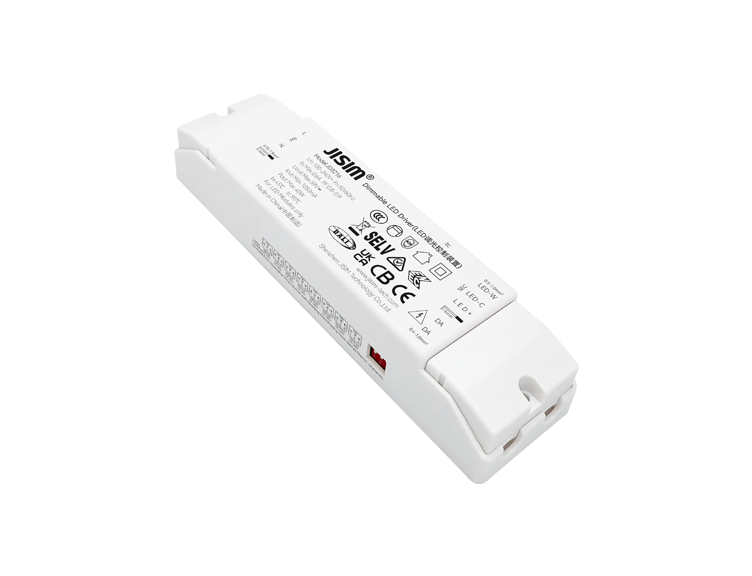

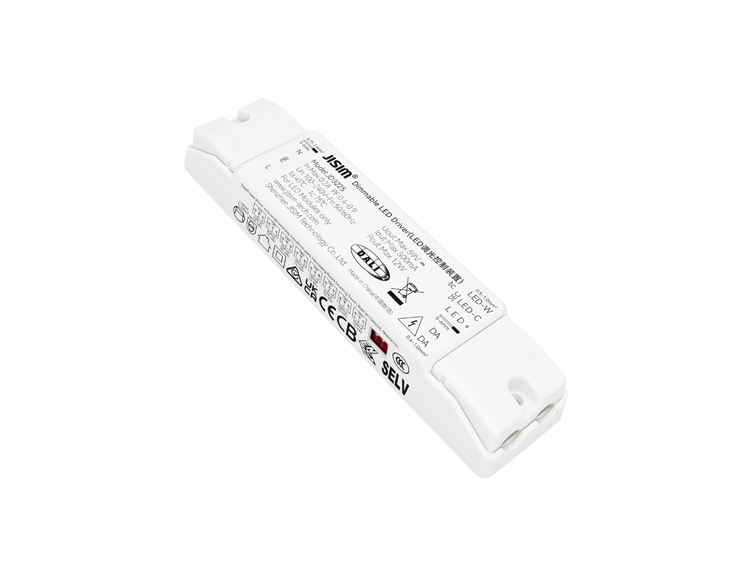

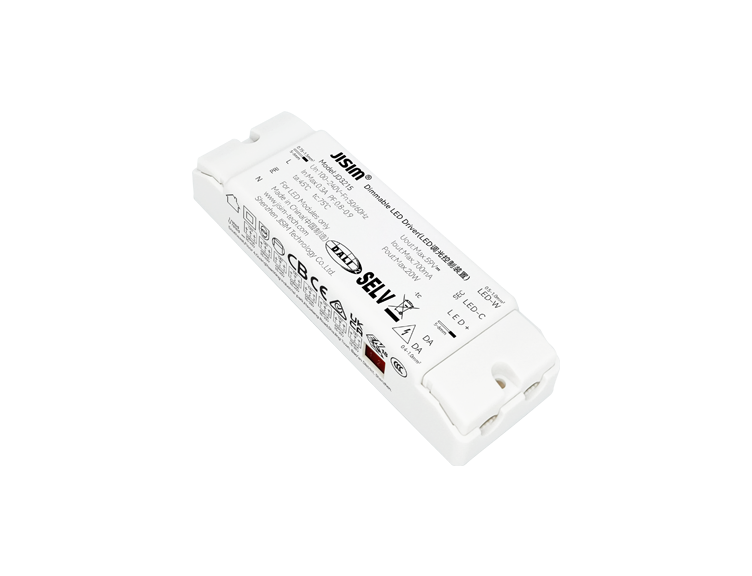

DALI-2+PushDim DT6 Independent CC CCT Tunable Series
HomeProductDALI-2

DALI-2+PushDim DT6 Independent CC CCT Tunable Series

Series Features

  • Compact design, suitable for small cutout downlights and linear lights
  • Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
  • Supports DALI-2 DT8 dimming and CCT tuning
  • Bipolar architecture design, built-in MCU with exclusive dimming algorithm, flicker-free and noise-free
  • Smooth high-performance dimming, compatible with more DALI controllers
  • Dimming range 0.1…100%, CCT range: Warmest…Coolest, built-in soft-start function
  • Select output current via DIP switch
  • Output short-circuit, open-circuit and overload protection
  • Isolated dimming port, output complies with SELV standard
  • Screw-locking terminals for input and output
  • Ambient temperature: -20～+45℃, maximum case temperature 75/80/90℃
  • Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
  • Protection Class Ⅱ
Consult Now Buy Now
  • Dimming Mode
    DALI DT8
  • Dimming Range
    0.1-100%
  • Protection
    Output short-circuit, open-circuit and overload protection
  • Protection Class
    IP20
  • Frequency
    50-60Hz
  • Weight
    Net Weight: 67.3±10g/pcs, Small Pack: 78.8g/pcs, Inner Pack: 6.6kg/carton, Outer Pack: 27.3kg/carton (See datasheet for details)
  • Package
    Inner Pack:80pcs/48pcs/30pcs/carton, Outer Pack:320pcs/192pcs/120pcs/carton
  • Operating Temperature
    -20～+45℃
  • Storage Temperature
    -20~85°C/10~95%RH
  • Max Case Temperature
    75/80/90℃
  • Withstand Voltage
    Input to Output:3750Vac,5mA,60s
  • Insulation Resistance
    Input to Output:100MQ/500VDC/25°C/70%RH
  • Safety Standard
    EN61347-1:2015,EN61347-2-13:2014+A1：2017
  • Lifetime
    >50000h@ta<45℃
