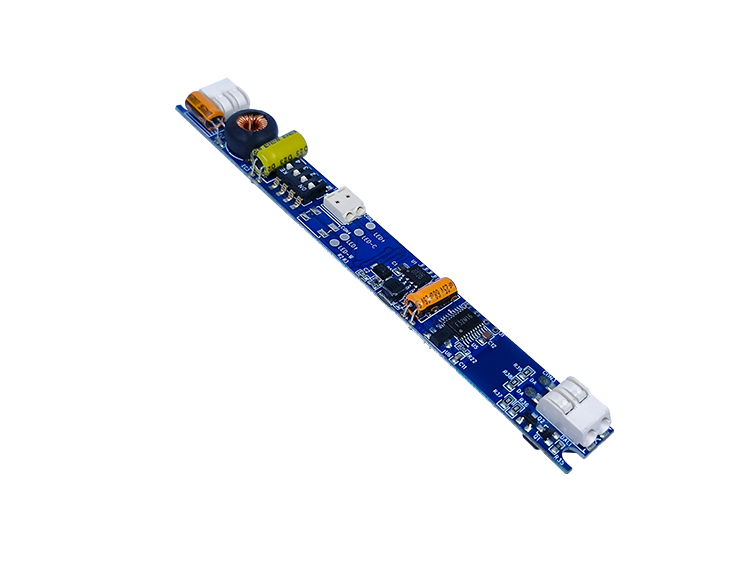

DALI-2+PushDim DT6 Built-in CC Magnetic Series 2

Compact design suitable for magnetic track lights
Dimmable constant current driver featuring high efficiency and long service life
Supports DALI-2 and Push dimming
Dual-pole structure with built-in MCU and exclusive dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming compatible with most DALI controllers
Dimming range: 0.1%–100% with built-in soft start
Output current selectable via DIP switches
Protections against output short circuit, open circuit and overload
Push-in wiring terminals for input and output
Ambient temperature: -20℃ ~ +45℃
Suitable for Class III luminaires

Consult Now Buy Now

Dimming Mode

JD3128
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20（带外壳）
Frequency

50-60Hz
Weight

Net Weight: 11.5±5g/pcs, medium carton: 2.92kg/carton, large carton: 12.59kg/carton (see specification for details)
Package

Medium carton: 210pcs/carton, large carton: 840pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

-
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
