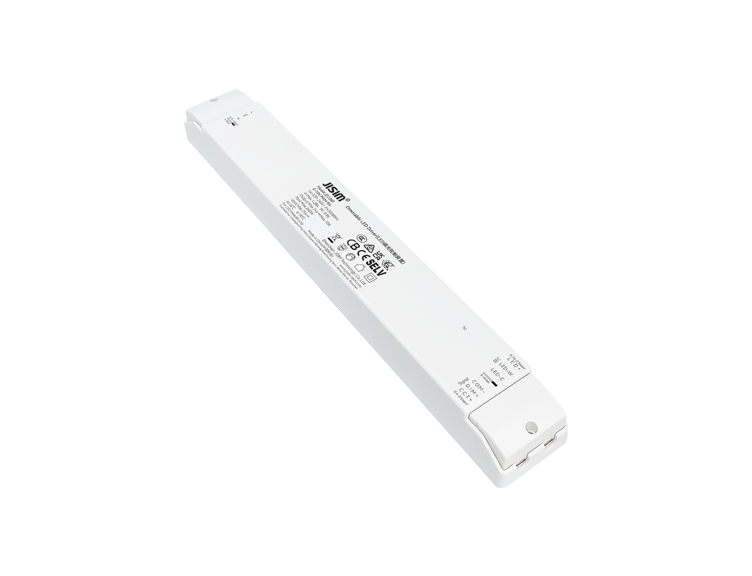

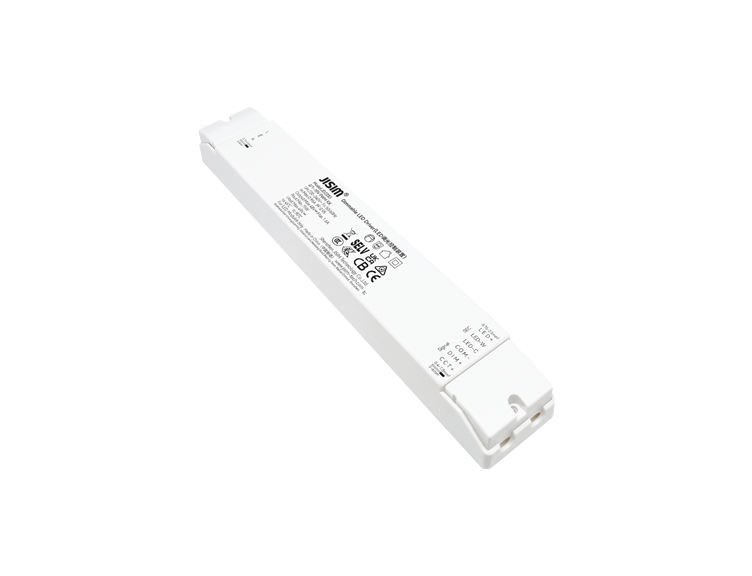

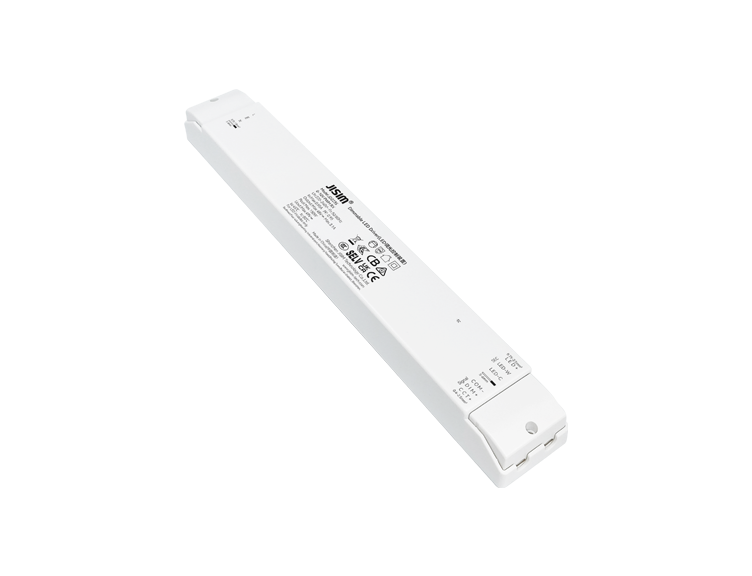

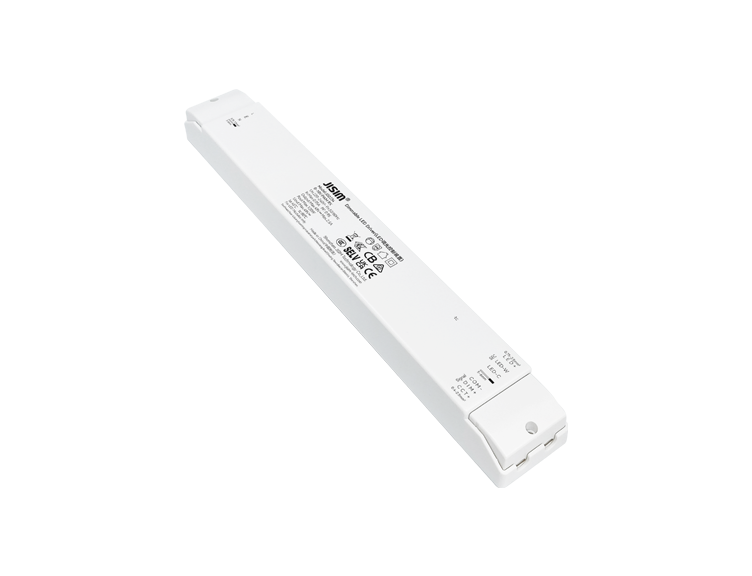

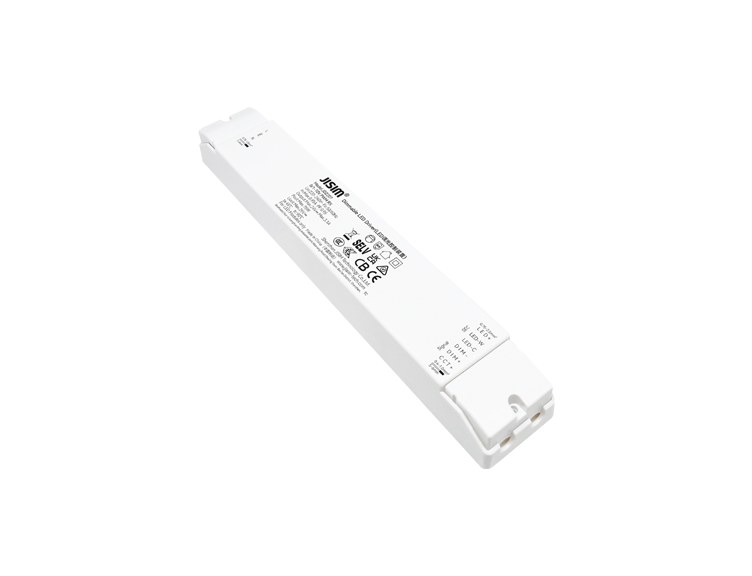

0/1-10V PWM RX Independent CV CCT Tunable Series 2

Independent design, suitable for LED strips, LED bars, linear lights, LED films, magnetic lights and decorative lights
Dimmable CCT tunable CV driver, full power, high power factor, high efficiency and long service life
Supports 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming
Built-in MCU with exclusive dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 1…100%, built-in soft-start function
Output short-circuit, open-circuit and overload protection
Isolated dimming port, output complies with SELV standard
Screw-locking terminals for input and output
Ambient temperature: -20～+45℃, maximum case temperature 90℃
Suitable for Class Ⅰ, Ⅱ, Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 261±10g/pcs, Small Pack: 291g/pcs, Inner Pack: 4.67kg/carton, Outer Pack: 19.56kg/carton (See datasheet for details)
Package

Inner Pack:15pcs/13pcs/carton, Outer Pack:60pcs/52pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
