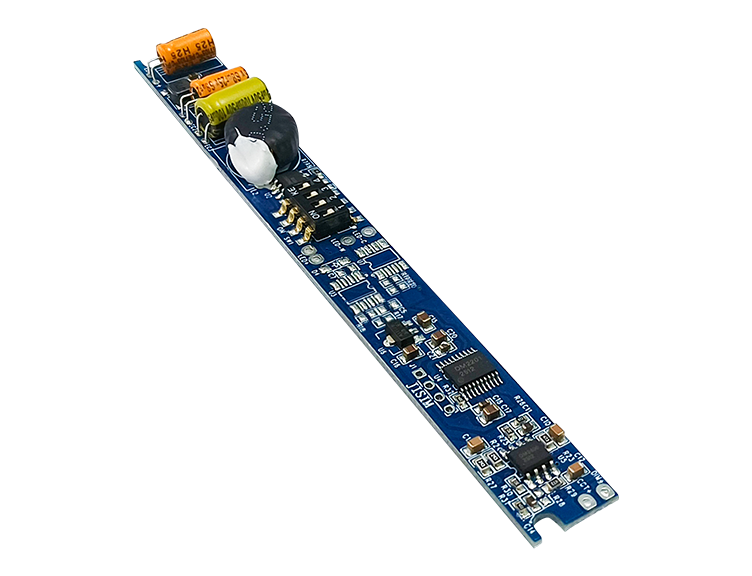

0/1-10V PWM RX Built-in CC Magnetic Series 2

Compact design applicable to magnetic track lights
Dimmable constant current driver with high efficiency and long service life
Supports 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming
Dual-pole structure equipped with built-in MCU and exclusive dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming compatible with most dimmers
Dimming range: 0.1%–100% with built-in soft start
Output current adjustable via DIP switches
Output short-circuit, open-circuit and overload protection
Ambient temperature range: -20℃~+45℃
Suitable for Class III luminaires

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

0.1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 11.5±10g/pcs, medium carton: 3.86kg/carton, large carton: 16.4kg/carton (refer to specification for details)
Package

Medium carton: 210pcs/carton, large carton: 840pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

-
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
