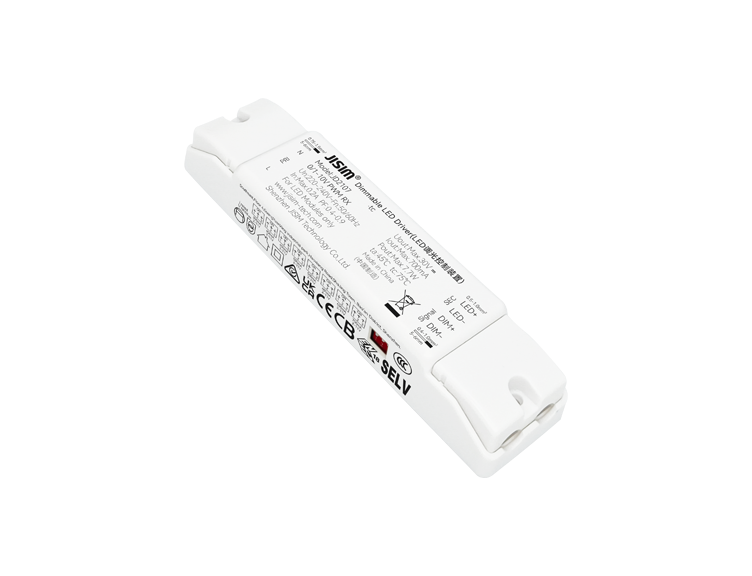

0/1-10V PWM RX Independent CC Series 2

Compact design, suitable for small cutout downlights & spotlights, linear lights
Dimmable CC driver, high efficiency and long service life
Supports 0-10V, 1-10V, 10V PWM and 100K potentiometer dimming
Dual-stage architecture with built-in MCU, unique dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more dimmers
Dimming range 0.1…100%, built-in soft start function
Select output current via DIP switch
Output short-circuit, open-circuit and overload protection
Comply with safety extra-low voltage standard
Screw-locked terminals for input and output
Ambient temperature -20～+45℃, maximum case temperature 75℃
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

0-10V PWM RX
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 67.9±10g/pcs, Small Pack: 79.4g/pcs, Inner Pack: 6.65kg/carton, Outer Pack: 27.5kg/carton (See datasheet for details)
Package

Inner Pack:80pcs/carton, Outer Pack:320pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75℃
Withstand Voltage

Input-to-Output:3750Vac,5mA,60s
Insulation Resistance

Input-to-Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
