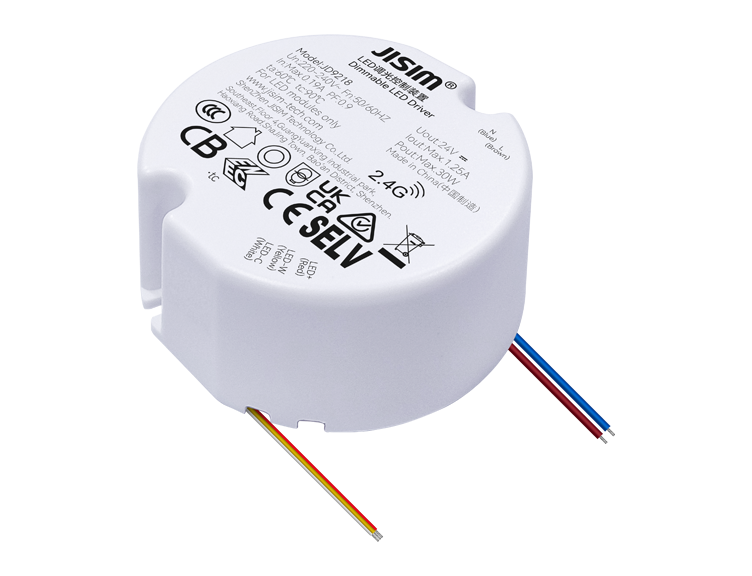

2.4G RF Built-in CV CCT Tunable Series

Compact design, suitable for modern decorative lamps such as wall lamps, table lamps and pendant lamps
Built-in driver adoption, independent IPEX antenna
Dimmable CCT tunable CC driver, high power factor, high efficiency and long service life
2.4G RF wireless communication with Mesh networking capability and strong anti-interference performance
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 1…100%, built-in soft start function
Supports local remote controller and panel control, remote control distance (open space)＞30 meters
Output short-circuit, open-circuit and overload protection
Complies with safety extra-low voltage standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internal potted sealing, providing enhanced protection for lamps requiring waterproof and moisture-proof functions
Suitable for Class Ⅰ,Ⅱ,Ⅲ luminaires
Protection Class Ⅱ

Consult Now Buy Now

Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 84.5±10g/pcs, Small Pack: 96.1g/pcs, Inner Pack: 6.64kg/carton, Outer Pack: 27.4kg/carton (See datasheet for details)
Package

Inner Pack:66pcs/52pcs/carton, Outer Pack:320pcs/208pcs/carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
