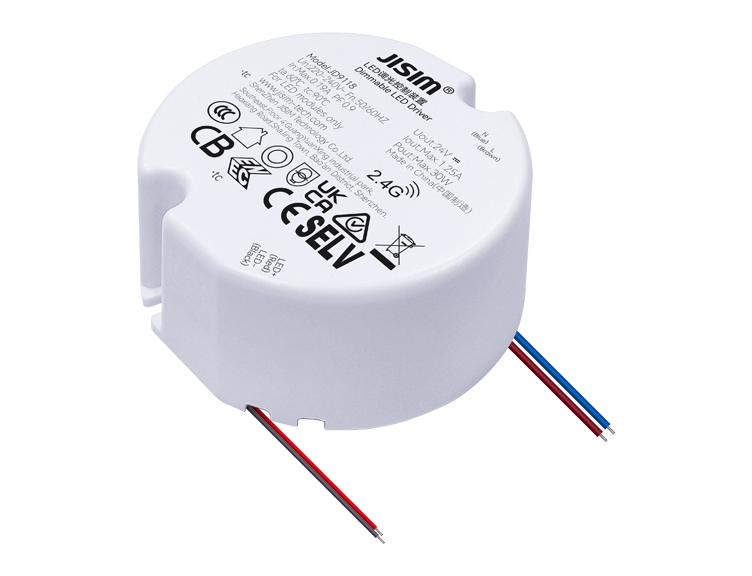

2.4G RF Built-in CV Series

Compact design, suitable for modern decorative luminaires such as wall lights, table lamps and pendant lights
Built-in driver application, independent IPEX antenna
Dimmable CV driver, high power factor, high efficiency, long service life
2.4G RF wireless communication with Mesh networking capability and strong anti-interference performance
Smooth high-performance dimming, flicker-free, noise-free
Dimming range 1…100%, built-in soft start function
Supports local remote control and panel control; remote control distance (open area)＞30m
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Internally potted and sealed to provide enhanced protection for luminaires requiring waterproof and moistureproof performance
Suitable for Class I, II and III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

2.4G RF
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 84.5±10g/pcs, Small Pack: 96.1g/pcs, Inner Pack: 6.64kg/carton, Outer Pack: 27.4kg/carton
Package

Inner Pack: 66pcs/52pcs per carton, Outer Pack: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
