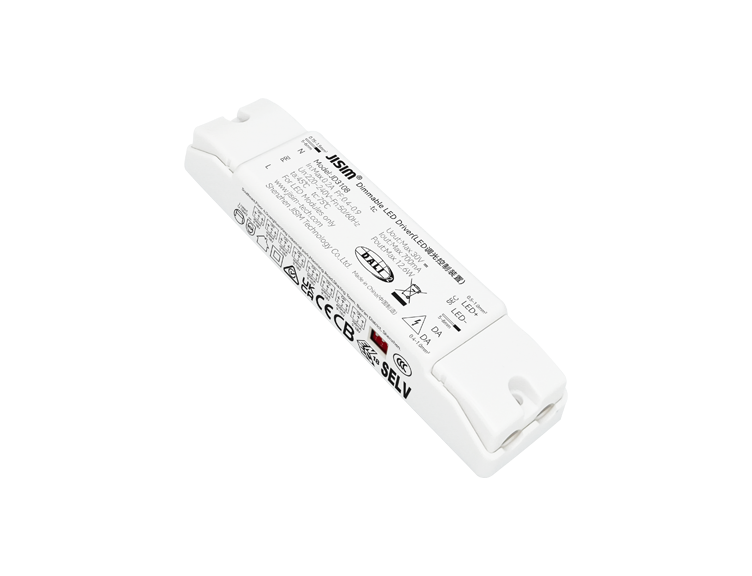

DALI-2+PushDim DT6 Independent CC Series

Compact design, suitable for small cutout downlights and linear lights
Dimmable CC driver, high efficiency, long service life
Supports DALI-2 + Push Dim
Two-stage architecture design, built-in MCU, unique dimming algorithm, flicker-free and noise-free
Smooth high-performance dimming, compatible with more DALI masters
Dimming range 1…100%, built-in soft start function
Output current selectable via DIP switch
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Screw-locked terminals for input and output wiring
Ambient temperature -20～+45℃, maximum case temperature 75℃
Suitable for Class I / II / III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

DALI DT6
Dimming Range

1-100
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 68.8±10g/pcs, Small Pack: 79.5g/pcs, Inner Pack: 6.66kg/carton, Outer Pack: 27.54kg/carton (See datasheet for details)
Package

Inner Pack: 80pcs per carton, Outer Pack: 320pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

75℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@ta<45℃
