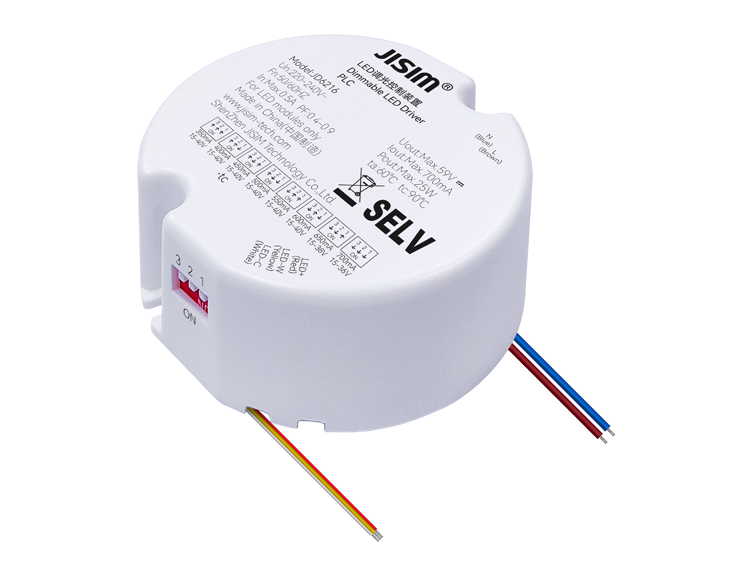

PLC Built-in CCT Tunable CC Series

Compact design, suitable for surface mounted downlights, spotlights, track lights and wall lamps
Built-in driver with independent Ipex antenna
Dimmable CCT tunable CC driver, high power factor, high efficiency, long service life
Power line communication, developed based on PLC platform with strong networking capability
Smooth high-performance dimming, flicker-free and noise-free
Dimming range 0.1…100%, built-in soft start function
Supports Tuya Smart App control
Output current selectable via DIP switch
Output short-circuit, open-circuit and overload protection
Compliant with SELV standard
Lead type for input and output terminals
Ambient temperature -20～+60℃, maximum case temperature 90℃
Potted and sealed inside the product, providing enhanced protection for luminaires requiring waterproof and moisture-proof performance
Suitable for Class I / II / III luminaires
Protection Class II

Consult Now Buy Now

Dimming Mode

PLC
Dimming Range

1-100%
Protection

Output short-circuit, open-circuit and overload protection
Protection Class

IP20
Frequency

50-60Hz
Weight

Net Weight: 85.5±10g/pcs, Small Pack: 95.6g/pcs, Inner Pack: 6.6kg/carton, Outer Pack: 27.3kg/carton (See datasheet for details)
Package

Inner Pack: 66pcs/52pcs per carton, Outer Pack: 264pcs/208pcs per carton
Operating Temperature

-20～+45℃
Storage Temperature

-20~85°C/10~95%RH
Max Case Temperature

90℃
Withstand Voltage

Input to Output:3750Vac,5mA,60s
Insulation Resistance

Input to Output:100MQ/500VDC/25°C/70%RH
Safety Standard

EN61347-1:2015,EN61347-2-13:2014+A1：2017
Lifetime

>50000h@tc=90℃
